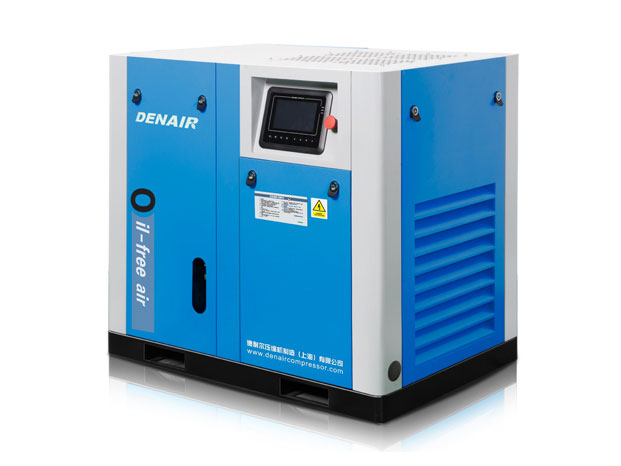

Denair DVAW-132W ປັກອາກາດບໍ່ນ້ຳມັນທີ່ຖືກຫມາກນ້ຳ (11-21.99m³/min; 175 hp)

Maxinmum working pressure: 7.5 / 8.5 / 10.5 bar(g) ( equivalent to 109 / 123 / 152 psig)

Capacity(FAD): 11-21.99 / 10.97-21.94 / 8.89-19.79 m³/min ( equivalent to 389-776 / 388-775 / 350-699 cfm)

Installed motor power: 132 kW; 175 hp

Driving Mode & Cooling Method: Direct Driven; W-Water Cooling

Noise level db(A): 76

Dimensions(mm) LxWxH: 2400x1700x1800 mm

Weight (kg): 3200

Air outlet pipe diamete: DN65

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C

**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A) change without notice.

Specifications are subject to change without notice.
