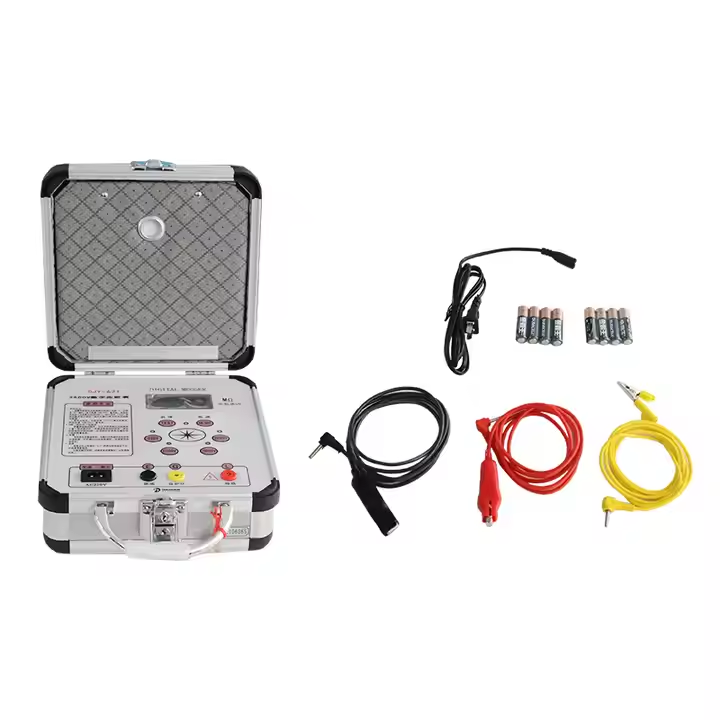

DEMIKS DJY-621 ອຸປະກອນທົດສອບຄວາມຕ້ອນຂອງການຕິດຕໍ່ສະຫນາມ (2500V, 19990MΩ)

Environment temperauture:0°C~45°C

Relative humandity：≤85%RH

Output voltage: 500V,1000V,2000V,2500V

Measurement range: 0-19990MΩ

Resolution:0.01MΩ, 0.1MΩ,1.0MΩ,10.0MΩ

relative error: 0-2000MΩ<±5%±2d

2000MΩ-19990MΩ≤±10%±2d

Voltage/load:2500V/20MΩ

Short-circuit current:>1.6mA

Voltage dips: about 10%

AC: 8*1.5V(AA,R6)battery

DC: 220V/50Hz

Static power consumption:≤160mW

Maximum power:≤2.5W

Volume:235mm*200mm*135mm

Weight:<1.4kg
