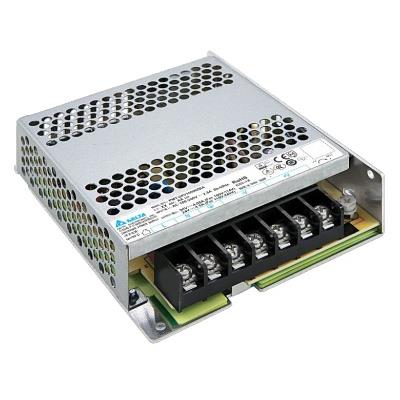

Delta Electronics, Inc. PMT-12V100W2BA ອຸປະກອນຈົດສະຫຼຸບ PMT2 Series, ພາເນວມອນທ໌ ພາວເອີ ຊັບລາຍ, 100W / 12V

Width: 97 mm (3.819 in)

Height: 30 mm (1.181 in)

Length: 129 mm (5.079 in)

Industry: Industrial

Approvals: IEC/EN60335-1, IEC/EN61558-1, IEC/EN61558-2-16

Compliance: IEC/EN60335-1, IEC/EN61558-1, IEC/EN61558-2-16

Efficiency: 87 %

Unit Weight: 285 g

Output Power: 102 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3.75 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Input Voltage, Nominal: 100 VAC to 240 VAC

Output Current-Channel 1: 8.5 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 30 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
