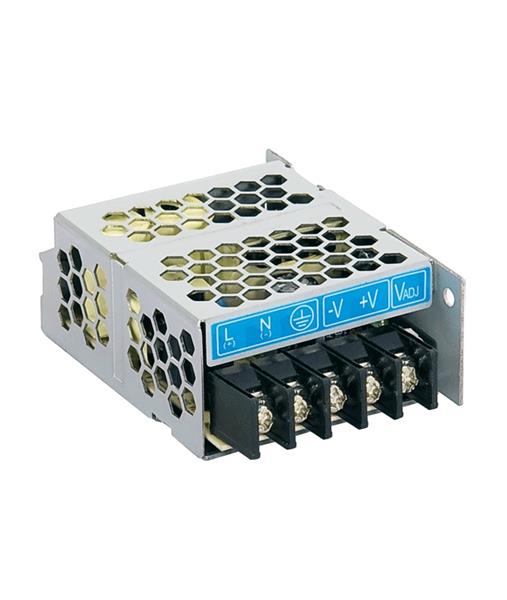

Delta Electronics, Inc. PMC-05V015W1AA ອຸປະກອນໃຫ້ພະລັງງານປ່ຽນແປງ 15W / 5V - ຂໍ້ມູນຕໍ່ຕົວຫນ້າ

Width: 51.054 mm (2.01 in)

Height: 27.94 mm (1.1 in)

Length: 76.962 mm (3.03 in)

Industry: Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 80 %

Unit Weight: 160 g

Output Power: 15 W

Input Voltage: 85 VAC to 264 VAC, 125 VDC to 375 VDC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 15 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 5 VDC
