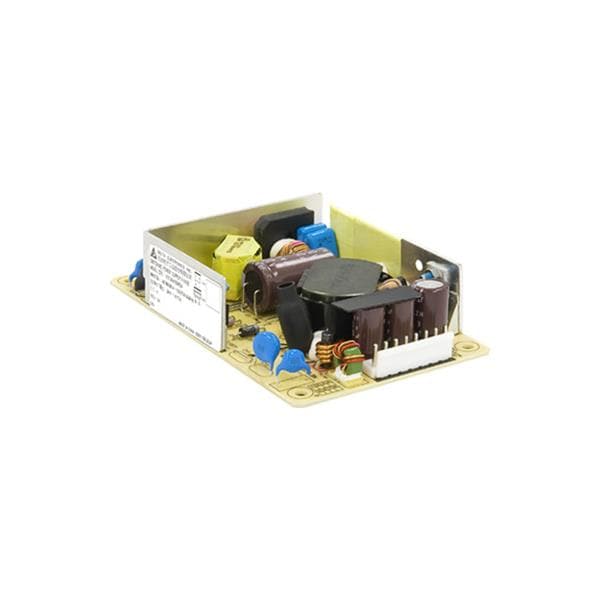

Delta Electronics, Inc. PJT-12V100WBAB ເພາະພາບແຮງງານພາບເປີດ 100W / 12V 3"x5"

Width: 76.2 mm (3 in)

Height: 31 mm (1.22 in)

Length: 127 mm (5 in)

Industry: Industrial

Approvals: IEC 62368-1, EN 62368-1, UL 62368-1

Efficiency: 86.5 %

Unit Weight: 210 g

Output Power: 100 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8.33 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
