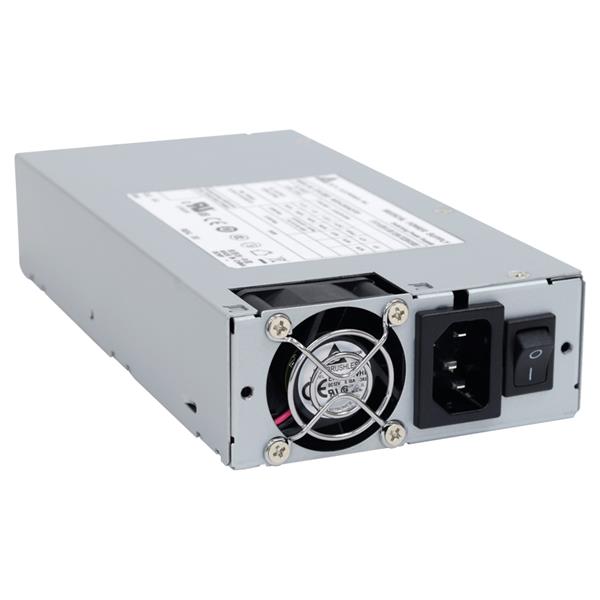

Delta Electronics, Inc. MDS-350AD701 AA ຕົວແປປະຕິບັດ AC-DC 350W/7V ພາຍໃນອຸປະກອນຈຳລອງພະລັງງານ, ATX12V

Width: 100 mm (3.937 in)

Height: 40.5 mm (1.594 in)

Length: 194 mm (7.638 in)

Industry: Medical

Approvals: IEC60601-1, EN60601-1

Compliance: IEC60601-1, EN60601-1

Efficiency: 82 %

Unit Weight: 1.2 kg

Output Power: 350 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 7 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 8 A

Output Current-Channel 2: 9 A

Output Current-Channel 3: 8 A

Output Current-Channel 4: 1.25 A

Output Voltage-Channel 1: 3.3 VDC

Output Voltage-Channel 2: 5 VDC

Output Voltage-Channel 3: 12 VDC

Output Voltage-Channel 4: - 12 VDC
