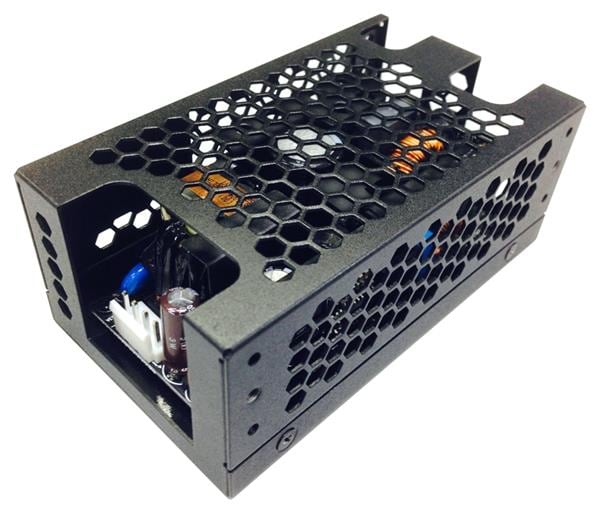

Delta Electronics, Inc. MDS-200ADB12 AA ເຊັດຊິ້ງ ພາວເອີ້ຍ 250W/12V ພາວເອີ້ຍປິດພາຍໃນ

Width: 64.7 mm (2.547 in)

Height: 44.7 mm (1.76 in)

Length: 113.9 mm (4.484 in)

Industry: Medical

Approvals: IEC60601-1, IEC60950-1

Compliance: IEC 60601-1, IEC 60950-1

Efficiency: 93 %

Unit Weight: 345 g

Output Power: 200 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Power - Convection: 110 W

Power - Forced Air: 200 W

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 9.17 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 10 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
