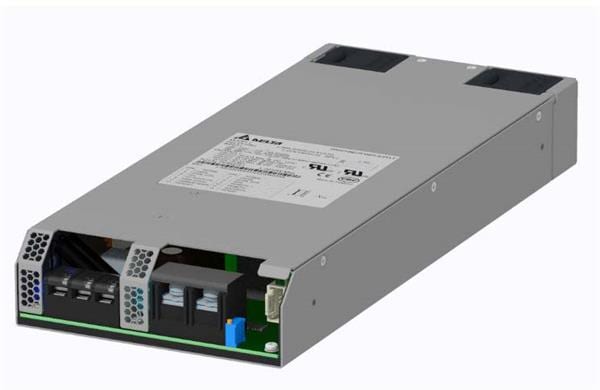

Delta Electronics, Inc. IMA-S2000-48-YVSTD ເຊັດຊອວິງ ແພລາຍ 2000W 48V 41.6A CV ມີພວດສູງສຸດ 3kW

Width: 127 mm (5 in)

Height: 40.6 mm (1.598 in)

Length: 309.6 mm (12.189 in)

Industry: Medical, Industrial

Approvals: IEC 60601-1-2

Dimensions: 309.6 mm x 127 mm x 40.6 mm

Efficiency: 94 %

Unit Weight: 2 kg

Output Power: 3 kW

Input Voltage: 80 VAC to 275 VAC, 120 VDC to 300 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 41.6 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
