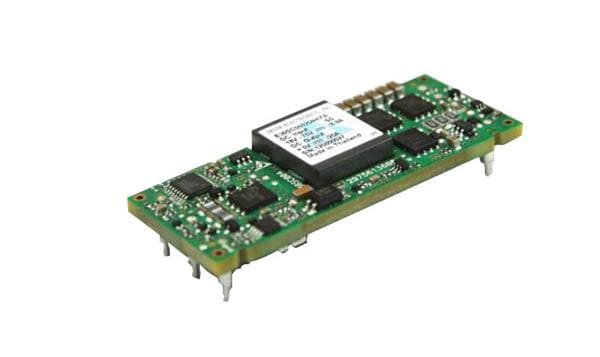

Delta Electronics, Inc. E36SC05025NRFA ອິສເລເທດ 125W 18-75Vin 5Vout 25A 1/8 Brick

Width: 22.8 mm (0.898 in)

Height: 12.7 mm (0.5 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Dimensions: 58.4 mm x 22.8 mm x 11 mm

Application: Optical Transport, Data networking, Communications, Servers

Unit Weight: 158.760 g

Output Power: 125 W

Input Voltage: 18 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 25 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
