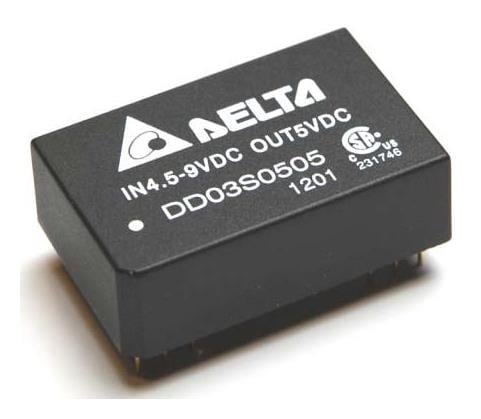

Delta Electronics, Inc. DD03S0505A ຕົວແປ DC/DC ທີ່ແຍກຕ່າງ, 5Vout, 3W

Width: 20.3 mm (0.799 in)

Height: 10.2 mm (0.402 in)

Length: 31.8 mm (1.252 in)

Unit Weight: 12.400 g

Output Power: 3 W

Input Voltage: 4.5 V to 9 V

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 9 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 600 mA

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
