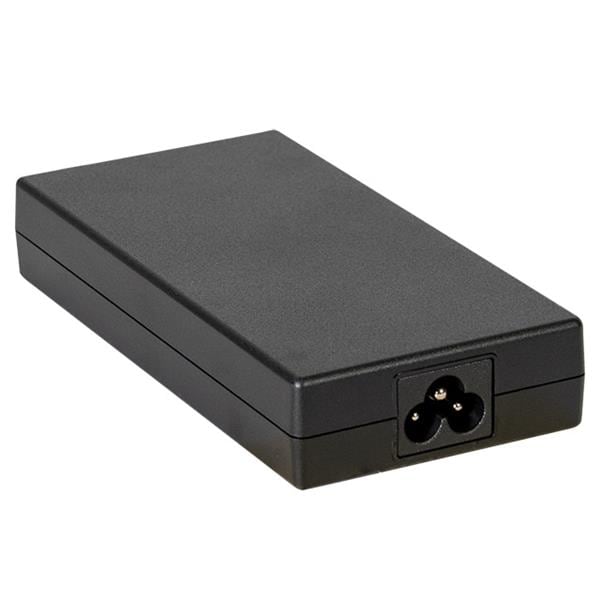

Delta Electronics, Inc. ADT-120A24AA F-A ເຄື່ອງປະຕິບັດ AC ເຄື່ອງປະຕິບັດ Desktop 120w / 24V - C6 - ປະເພດ Barrel

Width: 68.5 mm

Height: 24.5 mm

Length: 138 mm

Industry: Industrial

Approvals: IEC 62368-1, EN 62368-1, UL 62368-1, IEC 60950-1, EN 60950-1

Efficiency: 92 %

Unit Weight: 340 g

Output Power: 120 W

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Number of Outputs: 1 Output

DC Output Connector: 5.5 mm Turning Fork(5.5x2.5x11)

DC Output Cord Length: 1800 mm

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 24 V

AC Plug included/required: Required

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C
