Range: 20-110µm (0.8-4.3mils)
Resolution: 1µm (0.05mils)
Accuracy: ±5 µm (±0.2mil)
Measurement Time: 2-5s
Measurement Distance to Powder: 18mm (0.75
Measurement Area: 2mm (0.08 inch)
Wireless probe communicates with base unit up to 10m away. (30 feet)
Base Unit
Size: 146 x 64 x 31 mm (5.75" x 2.5" x 1.2")
Weight: 165 g (5.8 oz.) without batteries
Probe
Size: 222 x Ø50 mm (8.75" x Ø2.0")
Weight: 272 g (9.6 oz.) without batteries
Gage Comes Complete
with base unit and probe, protective rubber holster with belt loop and magnetic mount, probe fixture, 3 AAA batteries (base unit), 3 AA batteries (probe), instructions, instructional video, replacement probe screen, USB cable, carabiner and wrist strap, durable carrying case

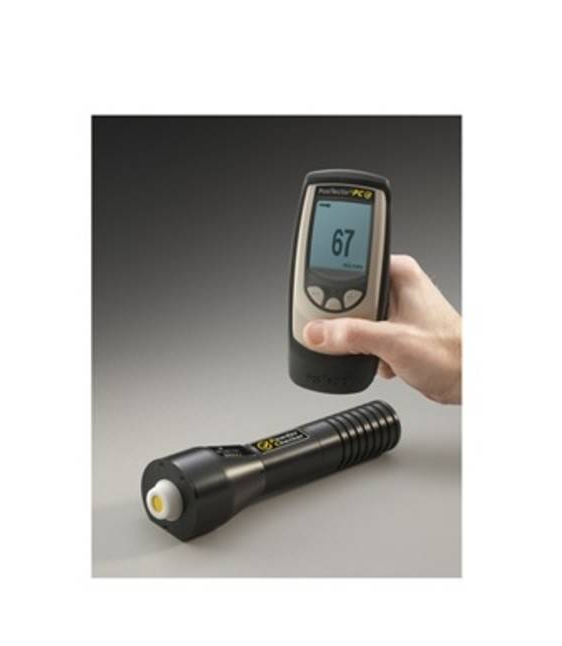

The PosiTector PC Powder Checker was designed for use in industrial powder coating environments.
The following is an overview of the probe display during the measurement process (button pressed).
The PosiTector PC can display basic statistical information as measurements are taken. Continually displays/updates statistics including min/max and average.
The PosiTector PC can record 1,000 measurements in up to 100 groups (batches) for on-screen statistical purposes (as shown above), for printing to an optional IR printer, or for transferring to a computer using the included USB cable. Readings are time-stamped as they are taken.
USB Mass Storage
The PosiTector PC Powder Checker uses a USB mass storage device class which provides a simple interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players.
Any computer can view and download measurements stored in memory (in batches) by navigating a virtual drive labeled POWDER using the included USB cable.
A formatted HTML report is viewed by selecting the “index.html” file found in the root directory. Additionally, delimited text files (.txt) are located in each batch folder for easy import into database, spreadsheet and other compatible applications.
Transferring Live Measurement Results
Live measurement results can be sent to data collection software or spray booth controller using a serial gadget driver and the provided USB cable.
IR Printer receives data via wireless infrared.
Display Languages: English, French, German, Spanish, Chinese, Japanese, Portuguese,
Italian, Norwegian, Russian, Czech, Polish and Korean.
The PosiTector PC Powder Checker was designed for use in industrial powder coating environments.
The following is an overview of the probe display during the measurement process (button pressed).
The PosiTector PC can display basic statistical information as measurements are taken. Continually displays/updates statistics including min/max and average.
The PosiTector PC can record 1,000 measurements in up to 100 groups (batches) for on-screen statistical purposes (as shown above), for printing to an optional IR printer, or for transferring to a computer using the included USB cable. Readings are time-stamped as they are taken.
USB Mass Storage
The PosiTector PC Powder Checker uses a USB mass storage device class which provides a simple interface to retrieve data in a manner similar to USB flash drives, cameras, or digital audio players.
Any computer can view and download measurements stored in memory (in batches) by navigating a virtual drive labeled POWDER using the included USB cable.
A formatted HTML report is viewed by selecting the “index.html” file found in the root directory. Additionally, delimited text files (.txt) are located in each batch folder for easy import into database, spreadsheet and other compatible applications.
Transferring Live Measurement Results
Live measurement results can be sent to data collection software or spray booth controller using a serial gadget driver and the provided USB cable.
IR Printer receives data via wireless infrared.
Display Languages: English, French, German, Spanish, Chinese, Japanese, Portuguese,
Italian, Norwegian, Russian, Czech, Polish and Korean.
