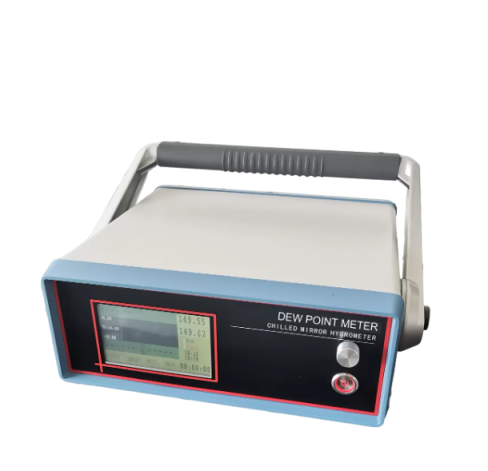

Dearto DT-ACG200G ເຄື່ອງມວນຈຸດຢຸງນ້ຳຢ່າງຖືກຕ້ອງດ້ວຍກະຈົກເຢັນ (5%RH ~ 95%RH, -30℃ ~ +90℃)

Measuring range(℃):

+ Temperature: -30℃ ~ +90℃

+ Dew point: 5%RH ~ 95%RH（non-condensing）

Dew point accuracy(℃): ±0.15

Resolution(℃): 0.01

Repeatability(°C): ±0.05

The minimum dew point measured at 20°C: -30℃

Response time (min): ±1℃/s

Mirror material: Rhodium Plated Copper

Body material: Aluminum Alloy

Cable length: 3m, 5m, 10m

Size and Weight: Φ46*156mm; 0.25 kg

Temperature sensor (integrated): Pt100; Accuracy: ±0.1℃; Temp. range: -50℃~180℃

Temperature sensor (remote): 4-wire Pt 100; Accuracy: ±0.1℃; Cable length: 3 m

Environmental conditions:

+ Temperature: -20 to +70°C; Sample gas conditions: Operating temperature: -40 to 90 °C

+ Pressure: 0 to 20 bar (290 psi); Operating pressure: 0 to 100 kPa

+ Flow rate: Atmospheric (ambient); flowing sample gas (0.3 to 1L/min)
