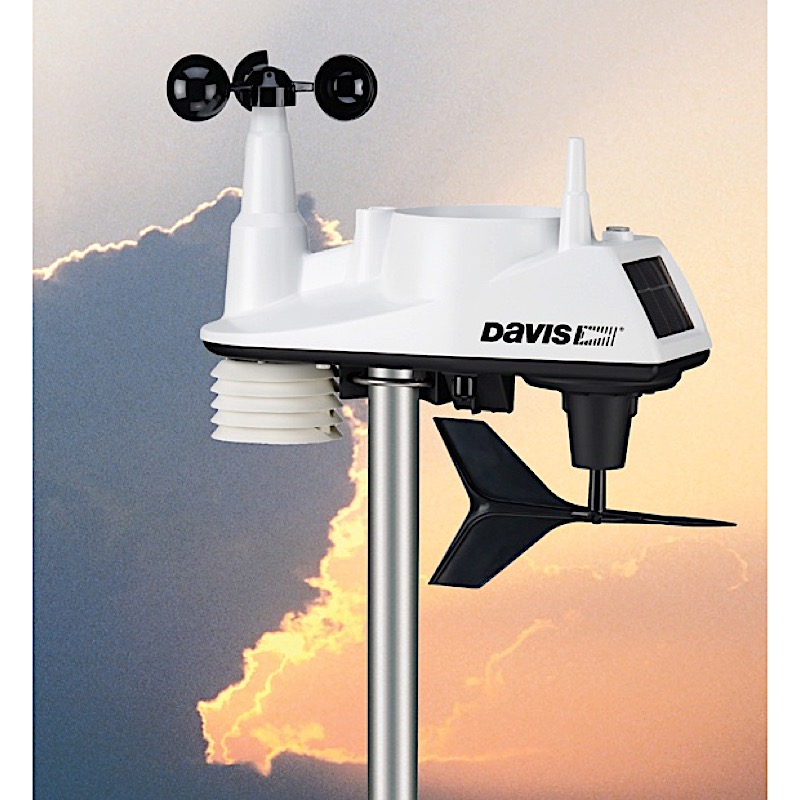

Parameters Sensor ISSVantage Vue Integrated Sensor Suite; Code: 6357
Operating temperature range: -40 ° to + 150 ° F (-40 ° to + 65 ° C)
Storage temperature: -40 ° to + 158 ° F (-40 ° to + 70 ° C)
Current: 0.20 mA (average), 30 mA (peak) at 3.3 VDC
Solar set: 5 Watts
Battery: CR-123 3-Volt Lithium cell
Battery life (3-Volt Lithium cell): 8 months without sunlight | more than 02 years depending on the solar battery
Wind Speed Sensor: Wind cups with magnetic switch
Wind Direction Sensor: Wind vane with magnetic encoder
Rain Collector Type: rain checker, 0.01 "per head (0.2 mm with rain gauge filter set, code: 7345,319), rain area 116 cm2
Temperature Sensor Type: PN Junction Silicon Diode
Relative Humidity Sensor Type: Film capacitor element
Structural shell with ABS plastic and ASA UV resistant
Dimensions: 329 mm x 146 mm x 340 mm
Weight: 2.47 kg
Vantage Vue Wireless Console controller parameters; Code: 6351
Controller operating temperature: 0 ° to + 60 ° C
Controller storage temperature range: -10 ° or + 70 ° C
Controller current: average 0.9 mA, 30 mA peak, (120 mA for bright display light, 0.125 mA for each transmitter station set controlled by console) at 4.4 VDC
Power adapter: 5 VDC, 300 mA
Backup battery: 3 C-cells
Battery life (without AC power): about 09 months
Grade with UV resistant ABS plastic
The LCD screen reflects backwards
Bright LEDs background
Size
Controller (with iantenna): 190 mm x 146 mm x 114 mm
Controller (with antenna) on wall: 190 mm x 178 mm x 76 mm
Display: 105 mm x 76 mm
Weight (with battery): 0.67 kg
Wireless signal transmitter specifications:
Data transmission / reception frequency:
+ US Models: 902 - 928 MHz FHSS
+ Overseas Models: 868.0 -868.6 MHz FHSS
Built-in ID Codes: 8
Output power:
+ 902 - 928 MHz FHSS: FCC-certified low power, less than 8 mW, no license required
+ 868.0 -868.6 MHz FHSS: CE-compliant, smaller than 8 mW, no copyright required
Limit:
+ Empty range: up to 1000 feet (300 m)
+ Through walls: 200 to 400 feet (60 to 120 m)
Measured parameters:
Pressure:
Pressure gauge: 16.00 "to 32.50" Hg, 410 to 820 mm Hg, 540 to 1100.0 hPa / mb
Pressure resolution: 0.01 "Hg, 0.1 mm Hg, 0.1 hPa / mb
Pressure accuracy: ± 0.03 "Hg
Update time for measuring pressure: 1 minute
Store every 15 minutes: day, month, year, high and low pressure
Time:
Measuring range 12 or 24 hours
1 minute resolution
Accuracy: ± 8 seconds / month
Dew point (calculated value):
Range: from -76 ° to + 54 ° C
Accuracy: ± 1.5 ° C
Resolution: 1oC
Evaporation (escape) level of steam:
Measured daily to 999.9mm
Measured monthly, every year: up to 1999.9mm
Forecast:
Over time: hours
Indicators: pressure (varies), wind speed and direction, precipitation, temperature, humidity, longitude, latitude, time
Precipitation: 0 to 6553 mm, accuracy of 4%. Resolution: 0.2mm
Rain speed: 1mm / hour to 1016mm / hour
There are also many other parameters such as: thermal radiation, humidity, moon phase, solar radiation, sunrise time, sunset, ultraviolet radiation ...
Dimensions: 329 mm x 146 mm x 340 mm
Weight: 2.47kg
Provide cover:
Meteorological weather station; Vantage Vue (code: 6250);
provide cover:
Vantage Vue Wireless Console; code: 6351
Vantage Vue Integrated Sensor Suite; code: 6357
User manual
Additional purchase options:
Weather Link PC connection software
Head support
