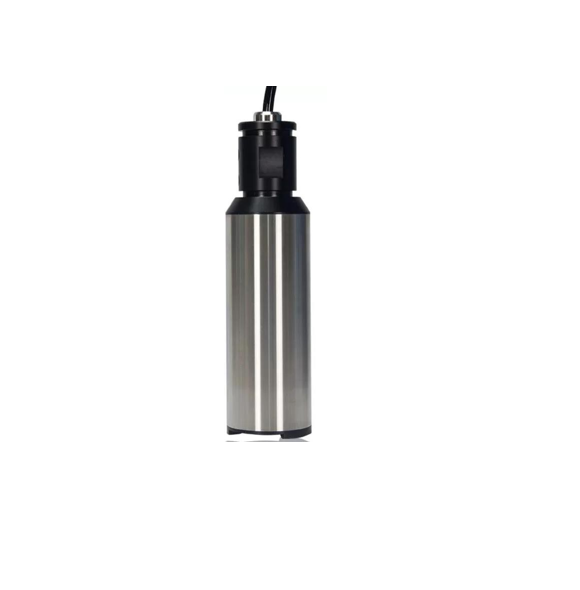

Daruifuno OPTU851Z-S ເຊັນເຊີຂອງແຂງ ແລະ turbidity (0.01~4000NTU, 5 m, RS485, for DUC2-SS series)

Resolution: 0.01NTU/1mg/L

Communication: RS485 MODBUS-RTU

Related Configuration: Humidityalarm

Response Time: T90＜15s

Work Pressure: ≤4Bar

Sample Flow Rate: Not dependent

Operating Temp: 0~50℃ (does not freeze)

Storage Temp: -10~60℃ (does not freeze)

Shell Material: Standard POM+SS 316L (Optional Titanium)

Dimension Diameter: 52mm length: 260 mm

Lead interface: One-piece or split M16 connector

Protection Grade: IP68

Power Supply: 9~24VDC

Power Consumption: 0.6W

Cable Standard: 5 meters (other length can be customized)

Turbidity: 0.01~4000NTU

Suspendedsolids: 1~3000mg/L

SS Calibration: Activated sludge calibration, diatomite calibration, linear calibration

Accuracy: Better than 5% of measured value or 1NTU, take the larger one
