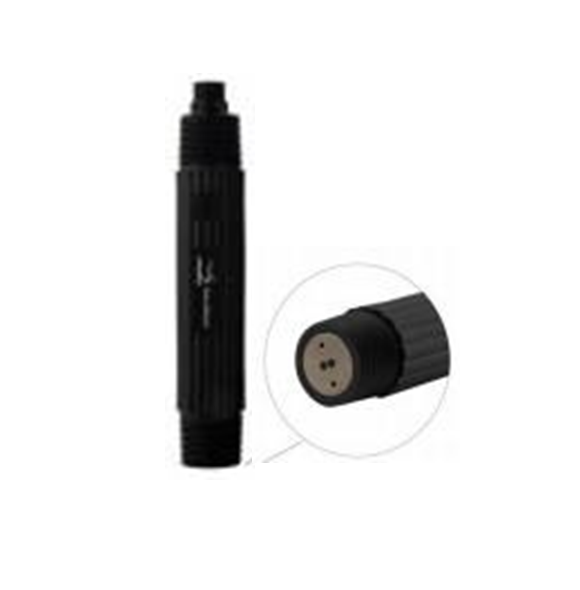

Daruifuno OPTU790 ເຊັນເຊີ Digital Turbidity (0.01~1000NTU, RS485, for DUC2-HTU series)

Measuring Range: 0.01~1000NTU

Resolution: 0.01NTU

Accuracy: Betterthan 5% of measured value or 0.3NTU,take the larger one

Communication: RS485 MODBUS-RTU

Temp Unit: Temp measurement

ResponseTime: T90＜15s

Work Pressure:≤6Bar

Sample Flow Rate: Not dependent

Operating Temp: 0~50℃ (doesnot freeze)

StorageTemp: -10~60℃ (doesnot freeze)

Shell Material: ABS or PPS

Dimension Diameter:35mm Length:215 mm

Mounting Thread: 1 inch NPT at both ends; Immersedor piped installation

Lead interface: One-piece or split M16 connector

Protection Grade: IP68

Power Supply: 6~12VDC

Power Consumption: 0.2W

Weight:220g

Cable Standard: 5 meters (otherlengthcan be customized)
