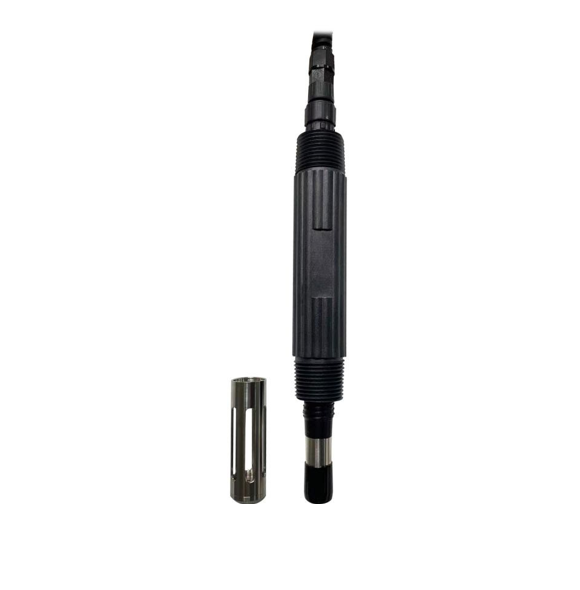

Daruifuno OPD790-YD07A Digital Dissolved Oxygen Sensor (0.00~20.00mg/L, 5m, RS485, for DUC2-DO series)

Measuring range Oxygen content: 0.00~20.00mg/L

Saturation: 0~200%,Temperature: 0.0~50.0℃

Resolution Oxygen content: 0.01mg/L; Saturation:1%; Temperature: 0.1℃

Accuracy Oxygen: ±0.1 mg/L; Saturation:±1%; Temperature: ±0.2 °C

Communication method: RS485 Modbus-RTU

Response speed: 0-> 100 % ; T90<25s; 100 -> 0%; T90< 30s Calibration method: Zero and full scale calibration

Working pressure: ≤3Bar

Operating temperature: 0°C to + 50°C

Storage temperature: -10°C to + 60°C

Main body material: main rod PPS (or ABS), measuring head 316 stainless steel

Dimensions in mm: Diameter 35mm, overall length 250mm

Installation: 1" NPT pipe thread sat the beginning and end

Lead interface: M16

Sensor power supply: 6~12 V

Sensor ower consumption： 0.1W

Protection class: IP68

Weight about 260 grams(not including wires)

Electric Wire: 5m
