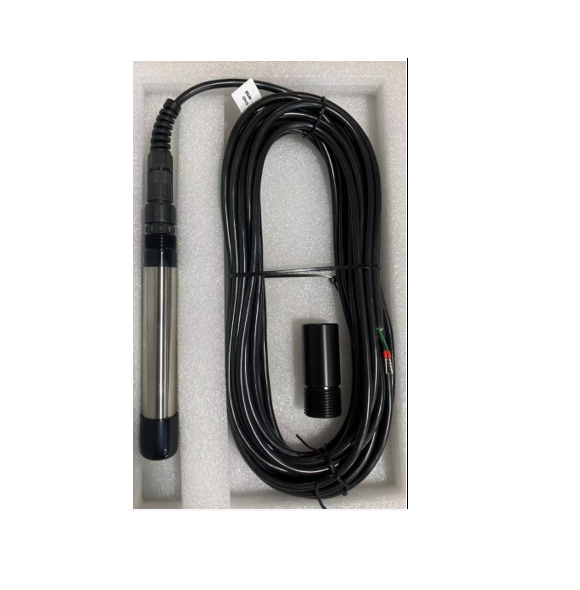

Daruifuno OPD701 ເຊັນເຊີອົກຊີເຈນທີ່ລະລາຍ (0.00~20.00mg/L, 10m, RS485, for DUC2-DO series)

Measuring Range:

- Dissolved oxygen:0.00~20.00mg/L

- Saturation:0~200%

- Temp:0~50℃

Resolution:

- DO 0.01mg/L

- Saturation:1%

- Temp: 0.1℃

Response Time: 60s

Digital Output: RS485, Modbus RTU

Related Compensation: Temperature/salinity/pressurceompensation

Calibration: One or two points

Work Pressure: 0~6Bar

Work Temp: 0~50℃

StorageTemp: -10~30℃

Material: Titanium alloy (Canbear the sea water)

Power Supply: DC 6~12V

Consumption: 0.1W

Dimensions Diameter:22mm Length:153mm

Installation: Submersible

Thread specifications: M22*1.5mm

Oxygen content:±0.1 mg/L; Saturation: ±1%; Temperature:± 0.2°C at 0~50°C

Lead Interface: M16

Protection Grade: IP68

Cable Standard: 10 meters (other length can be customized)

Weight: 100g
