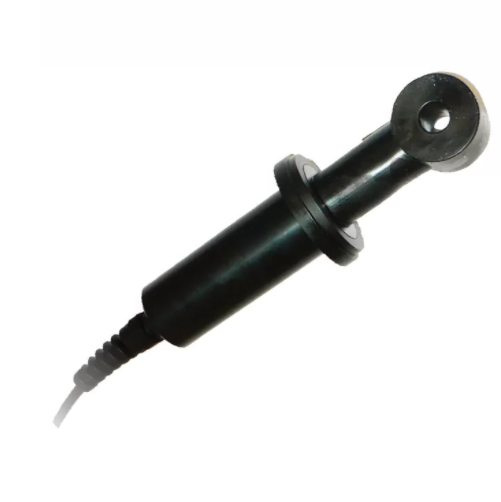

Daruifuno CTZN ເຊັນເຊີ inductive inductive (100mS/cm, IP68)

Measure Principle: Inductive conductivity sensor regulated in temperature

Measure Ranges Conductivity: 0.0~100.0 mS/cm

Resolution: 0.1

Accuracy T°C: ± 0.1 °C range 0-40 °C

Measure Range Salinity: 5~60 g/Kg

Response Time: 90% of the value in less than 30 seconds

Working Temperature: 0°C ~+50°C

Temperature CompensationNTC or external measure

Stocking Temperature: -10°C ~+60°C

Signal Interface: Modbus RS485 (standard) and SDI12

Max Refreshing Time: Max<1s

Sensor Power Supply: 5~28V, max 30 V

Dimensions: Diameter: 62.4 mm; Length: 196 mm

Weight: 700 g

Material: PVC, EPDM, stainless steel

Maximum Pressure: 5 bars

Protection Grade: IP68
