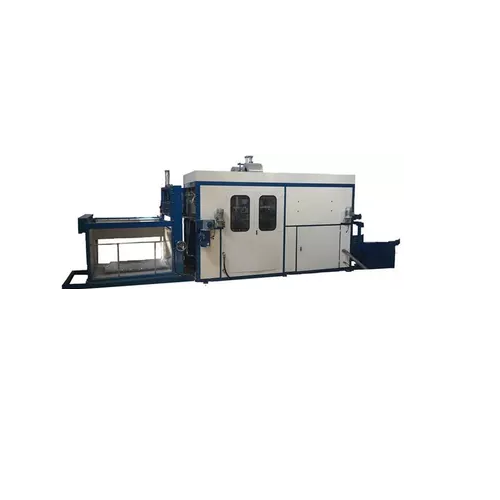

Danrel DR-71H-L ຂະໜາດໃຫຍ່ເຄື່ອງປຼາສະຕິກອັດຕະໂນມັດສູນຍາກາດ

Power Consumption: around 24 KW

Power supply: AC 380 V 3P (customized)

Forming Width: 450-710 mm (adjustable)

Forming Length: 560-1220 mm (adjustable)

Base Stroke: 350 mm

Sutiable Material Thickness: 0.2-2 mm

Sutiable Material: PVC, PET, PP, PS, PC, etc

Working efficiecy: 300-480 times per hour

Vacuum Pump Capacity: 100 L/Hour

Operation: PLC/Touch Screen

Temperature Control: PID control

Cooling: Cooling Water+Wind (Blower power: 0.75 KW*2)

Dimension:

+ Forming Part-L3520*W1300*H2600 mm

+ Material Loading Part-L1300*W1100*H1000 mm

+ Material Receiving Part-L2000*W1300*H1900 mm

Gross weight: 3000 kg
