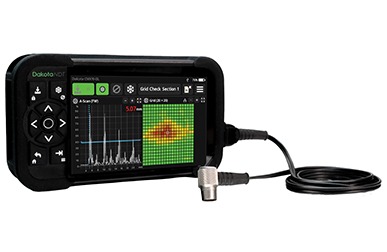

Dakota CMX10-DL ເຄື່ອງວັດແທກຄວາມໜາຂອງການກັດກ່ອນ (PE: 0.63 - 914.4mm)
Operation of Gauge Controls:Keypad Only, Touchscreen Only or Keypad & Touchscreen Combined Control
Gauge Dimensions:7.1 x 4.1 x 2.0" (180 x 105 x 50mm)
Gauge Weight:1.92lbs (872g)
Operating Temperature:14ºF to 122ºF (-10 to 50ºC)
Probe Sockets Type(s):1/2 x Lemo-00 1x ODU Smart Port
Power Supply:LI-Ion - Rechargeable Smart Battery or Mains Power Supply
Battery Life:9 to 15 hrs (Dependant on usage)
Ingress Protection (IP):Dust tight and protected against low power water jets in any direction; equivalent to IP65
Certification:Calibration Certificate
Packing List: Dakota CMX10-DL Gauge, Ultrasonic Couplant; 120ml (4fl oz), Power Supply (UK, EU and US) Adapters, Rechargeable Battery, Hand Strap (x1), Extension straps (x2), Screen Protector x 1, USB Cable, Calibration Certificate, User Guide, DakMaster™ download card, Transit Case
Supplied complete with:
Power Supply with UK, EU and US Adapters, Rechargeable Smart Battery Pack Li-Ion 10.8V, 3.35Ah, 36.2Wh, Ultrasonic Couplant, 120ml/4fl oz, Hand Strap (x1) with Extension Pieces (x2), Screen Protector (x1), Transit Case, USB Cable, User Guide
Option probe not includes
Datasheet
Part Number | Description | ||||||
CMX10-DL | DakotaNDT
Full Waveform Capture Corrosion & Precision Thickness Gauge | ||||||
SPARES / ACCESSORIES | |||||||
Part Number | Description | ||||||
T92033669 | Screen Protector, Pack of 5 | ||||||
T92033670 | Hand Strap (including extension pieces) | ||||||
T92033673 | Transit Case | ||||||
T92033668 | USB Cable | ||||||
T92033672 | Rechargeable Smart Battery Pack Li-Ion 10.8V, 3.35Ah, 36.2Wh | ||||||
T92033671 | Power Supply with UK, EU and US Adapters | ||||||
DUAL ELEMENT THICKNESS TRANSDUCERS - 'INTELLIGENT' - The transducers listed below are 'intelligent' transducers with automatic transducer recognition | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
TXC1M00EP-2 | Dual Element - 'Intelligent' - Standard | 1MHz | 1/2" | ODU | Side | ||
TXC5M00CP-10 | Dual Element - 'Intelligent' - Hi-Damped | 5MHz | 1/4" | ODU | Side | ||
TXC5M00CP-4 | Dual Element - 'Intelligent' - Standard | 5MHz | 1/4" | ODU | Side | ||
TXC5M00EP-10 | Dual Element - 'Intelligent' - Hi-Damped | 5MHz | 1/2" | ODU | Side | ||
TXC7M50BP-3 | Dual Element - 'Intelligent' - Hi-Damped | 7.5MHz | 3/16" | ODU | Side | ||
TXC7M50CP-4 | Dual Element - 'Intelligent' - Extra Resolution | 7.5MHz | 1/4" | ODU | Side | ||
DUAL ELEMENT THICKNESS TRANSDUCERS | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
T-104-0000 | Dual Element - Standard | 1MHz | 1/2" | Potted | Side | ||
T-102-1000 | 2.25MHz | 1/4" | Potted | Side | |||
T-104-1000 | 2.25MHz | 1/2" | Potted | Side | |||
T-101-2700 | Dual Element - Hi-Damped | 5MHz | 3/16" | Potted | Side | ||
T-102-2700 | 5MHz | 1/4" | Potted | Side | |||
T-104-2700 | 5MHz | 1/2" | Potted | Side | |||
T-101-3700 | 7.5MHz | 3/16" | Potted | Side | |||
T-102-3700 | 7.5MHz | 1/4" | Potted | Side | |||
SINGLE ELEMENT CONTACT TRANSDUCERS - FINGER TIP (2nd Layer Function) | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
T-4033-1855 | Single Element - Finger Tip Contact | 2.25MHz | 3/8" | Microdot | Side | ||
T-4023-2855 | 5MHz | 1/4" | Microdot | Side | |||
T-4033-2855 | 5MHz | 3/8" | Microdot | Side | |||
T-4023-4855 | 10MHz | 1/4" | Microdot | Side | |||
ANGULAR PROVE UP TRANSDUCERS - Corrosion Crack G Pit Detection | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
TF4M0045 | Standard Shear Wave - 45 Deg | 4MHz | 10mm | Lemo OO | Side | ||
SINGLE ELEMENT DELAY LINE TRANSDUCERS - 'INTELLIGENT' - The transducers listed below are 'intelligent' transducers with automatic transducer recognition | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
TXC15M0CM | DakotaNDT Full Waveform Capture Corrosion G Precision Thickness Gauge | 15MHz | 1/4" | ODU | n/a | ||
TXC20M0CM | 20MHz | 1/4" | ODU | n/a | |||
SINGLE ELEMENT DELAY LINE TRANSDUCERS | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
T-404-1507 | Single Element - Standard | 2.25MHz | 1/2" | Microdot | Top | ||
T-402-2507 | 5MHz | 1/4" | Microdot | Top | |||
T-404-2507 | 5MHz | 1/2" | Microdot | Top | |||
T-402-5507 | 15MHz | 1/4" | Microdot | Side | |||
T-402-6507 | 20MHz | 1/4" | Microdot | Side | |||
SINGLE ELEMENT DELAY LINE PENCIL TRANSDUCERS | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
T-481-4507 | Single Element - Pencil 1/16" Tip | 10MHz | 3/16" | Microdot | Top | ||
T-581-5507 | 15MHz | 3/16" | Microdot | Top | |||
T-681-4507 | Single Element - Pencil 90° Right Angle | 10MHz | 3/16" | Microdot | Side | ||
DELAY TIPS FOR SINGLE ELEMENT DELAY LINE TRANSDUCERS | |||||||
Part Number | Type | Diameter | Material | ||||
F-000-7102 | Delay Tip - Standard | 1/4" x 3/8" L | Acrylic | ||||
F-000-7103 | 1/4" x 1/2" L | Acrylic | |||||
X-132-0000 | Delay Tip - Cone | 1/8" | Acrylic | ||||
X-532-0000 | 3/16" | Acrylic | |||||
X-633-0000 | Delay Tip - Standard | 1/4" | Graphite | ||||
X-533-0000 | Delay Tip - Cone | 3/16" | Graphite | ||||
X-152-0000 | Delay Tip - Pencil | 1/16" x 0.45 L | Acrylic | ||||
X-752-0000 | Delay Tip - Pencil | 1/8" x 0.45 L | Acrylic | ||||
TRANSDUCER CABLES | |||||||
Part Number | Description | ||||||
N-104-0020 | Transducer Cable: 1.2m (4') Single Lemo 00 to Microdot | ||||||
N-104-0000 | Transducer Cable: 1.2m (4') Single Lemo 00 to Lemo 00 - Prove up transducer | ||||||
ULTRASONIC COUPLANT | |||||||
Part Number | Description | ||||||
T92015701 | Ultrasonic Couplant, 120ml/4fl oz | ||||||
T92015701-5 | Ultrasonic Couplant, 120ml/4fl oz, Pack of 5 Bottles | ||||||
T92024034-7 | Ultrasonic Couplant, 300ml (10fl oz) | ||||||
T92024034-8 | Ultrasonic Couplant; 500ml (17fl oz) | ||||||
CALIBRATION BLOCKS | |||||||
Part Number | Description | ||||||
X-000-0001 | Calibration Block: 5 Step; 0.1 - 0.5"; 4340 Steel | ||||||
X-000-0002 | Calibration Block: 4 Step; 0.25 - 1.0"; 4340 Steel | ||||||
X-000-0022 | Calibration Block: 5 Step; 2.5 - 12.5mm; 1018 Steel | ||||||
X-000-0005 | Calibration Block Carry Case | ||||||
MISCELLANEOUS TRANSDUCER ACCESSORIES | |||||||
Part Number | Description | ||||||
F-000-7000 | Bell shaped Spring Loaded Probe Holder (V-Block) – Pencil Probes - Top Cable Entry Models Only | ||||||
F-000-7001 | Bell shaped Spring Loaded Probe Holder (V-Block) – Dual Transducer - Tube Inspection | ||||||
A-129-6003 | 6” Extension Wand for Single Element Microdot Transducers | ||||||
Part Number | Description | ||||||
