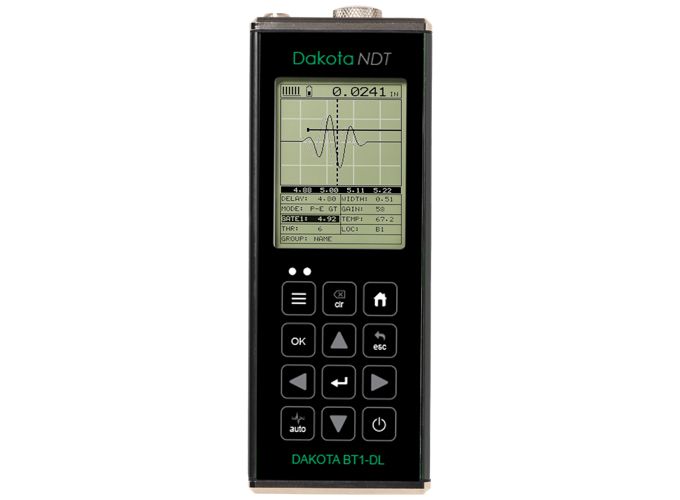

Dakota BT1-DL Bolt Tension Monitor (PE - 25.4 - 25400mm)
Measurement Range:
PE - 25.4 - 25400mm (1 - 999”)
Resolution: 0.001mm (0.0001”) or 0.0001mm (0.00001”) switchable
Operating Temperature: -10 to 60ºC (14 to 140ºF)
Power Supply: 3 x AA batteries and via USB
Battery Life: Alkaline 35 hrs; Nicad 10 hrs; NI-MH 35 hrs
Gauge Weight: 383g (13.5oz) - including batteries
Gauge Dimensions: 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)
Packing List: Unit; 3 AA Batteries; 4 oz. Bottle of Couplant; USB Type A to Type C Transfer Cable; Carrying Case; 10’ Lemo to Microdot Transducer cable; PC Utility Software (download from website); Operation Manual and Certification.
option TRANSDUCERS
Datasheet
Manual
ACCESSORY ITEM | |||||
Part Number | Description | ||||
A-156-8001 | Temperature Sensor with 1.8m (6') Cable | ||||
SINGLE ELEMENT CONTACT TRANSDUCERS - NON MAGNETIC | |||||
Part Number | Type | Frequency | Diameter | Connector | Connection |
T-5903-2875 | Single Element Contact (Non Magnetic) - Finger Tip - Slim Line | 5MHz | 1/8" | Microdot | Top |
T-5903-4875 | 10MHz | 1/8" | Microdot | Top | |
T-5023-1855 | Single Element Contact (Non Magnetic) - Finger Tip Contact | 2.25MHz | 1/4" | Microdot | Top |
T-5023-2855 | 5MHz | 1/4" | Microdot | Top | |
T-5023-4855 | 10MHz | 1/4" | Microdot | Top | |
T-5043-1855 | 2.25MHz | 1/2" | Microdot | Top | |
T-5043-2855 | 5MHz | 1/2" | Microdot | Top | |
SINGLE ELEMENT CONTACT TRANSDUCERS - MAGNETIC | |||||
Part Number | Type | Frequency | Diameter | Connector | Connection |
T-700-2405 | Single Element Contact (Magnetic) | 5MHz | 1/8" | Microdot | Top |
T-700-4405 | 10MHz | 1/8" | Microdot | Top | |
T-702-1405 | 2.25MHz | 1/4" | Microdot | Top | |
T-702-2405 | 5MHz | 1/4" | Microdot | Top | |
T-702-4405 | 10MHz | 1/4" | Microdot | Top | |
T-703-1405 | 2.25MHz | 3/8" | Microdot | Top | |
T-703-2405 | 5MHz | 3/8" | Microdot | Top | |
T-704-1405 | 2.25MHz | 1/2" | Microdot | Top | |
T-704-2405 | 5MHz | 1/2" | Microdot | Top | |
T-706-1405 | 2.25MHz | 3/4" | Microdot | Top | |
T-706-2405 | 5MHz | 3/4" | Microdot | Top | |
GLUE ON SINGLE ELEMENT CONTACT TRANSDUCERS | |||||
Part Number | Type | Frequency | Diameter | Connector | Connection |
T-895-0607 | Single Element Contact - Glue On | 2.25MHz | 3/4" | Potted | Top |
A-000-9003 | Glue On Single Contact Crystals: 1/10"x1/10", Pack of 12 | ||||
A-000-9001 | Glue On Single Contact Crystals: 1/8"x1/8", Pack of 12 | ||||
A-000-9002 | 1/8” Magnetic Spring Loaded Center Pin Fixture – Hex Head Bolts | ||||
INSTRUMENT G CARRYING CASES | |||||
Part Number | Type | ||||
F-149-0001 | MINI-MAX / BT1 Instrument Case: Nylon | ||||
A-149-6002 | MINI-MAX / BT1-DL Instrument Case (v2.0): Rubber | ||||
F-250-0006 | MAX II / BT2-DL Instrument Case: Nylon | ||||
A-100-6003 | BT1 / MINI-MAX Plastic Transit Case | ||||
A-250-6002 | BT2 / MAX II Plastic Transit Case | ||||
TRANSDUCER CABLES | |||||
Part Number | Type | ||||
N-104-0020 | Transducer Cable: 1.2m (4') Single Lemo 00 to Microdot | ||||
N-106-0020 | Transducer Cable: 1.8m (6') Single Lemo 00 to Microdot | ||||
N-110-0020 | Transducer Cable: 3m (10') Single Lemo to Microdot | ||||
N-110-6020 | Transducer Cable: 3m (10') Single Lemo 00 to Microdot, Hi Temp, Hi Wear Teflon | ||||
N-120-0020 | Transducer Cable: 6m (20') Single Lemo to Microdot Single | ||||
N-120-6020 | Transducer Cable: 6m (20') Single Lemo to Microdot, Hi Temp, Hi Wear Teflon | ||||
N-320-0000 | Transducer Cable: 6m (20') 2 Pin Lemo 00 to 2 Pin Lemo 00 | ||||
N-104-0090 | Transducer Cable: 1.2m (4') Single Lemo 00 to Spring Loaded Center Pin Fixture – Recessed Cap Bolts | ||||
N-704-0090 | Transducer Cable: 1.2m (4') Single Lemo 00 to Spring Loaded 2 Pin fixture 5/16” Spacing | ||||
N-704-0094 | Transducer Cable: 1.2m (4') Single Lemo 00 to Spring Loaded 2 Pin fixture 1/4” Spacing | ||||
A-000-9002 | Transducer Cable: 1/8” Magnetic Spring Loaded Center Pin Fixture – Hex Head Bolts | ||||
ULTRASONIC COUPLANT | |||||
Part Number | Description | ||||
V-000-0005 | Ultrasonic Couplant - Low Viscocity; 120ml (4fl oz) Bottle | ||||
CALIBRATION BLOCKS | |||||
Part Number | Description | Material | |||
X-000-0020 | Glass Calibration Block (1", 2" & 3") | Glass | |||
X-000-0011 | Calibration Bar: 3"; 4340 Steel | 4140 Steel | |||
X-000-0010 | Calibration Bar: 3" & 6"; 4340 Steel | 4140 Steel | |||
MISCELLANEOUS ACCESSORIES | |||||
Part Number | Description | Compatible with | |||
A-167-5004 | High Speed Shut Off Box (control a pump) – Direct Hardware | MAX II / BT2 | |||
DATA CABLES G ADAPTERS | |||||
Part Number | Description | Compatible with | |||
N-306-0010 | 1.8m (6') RS232 (DB-9 to Lemo) Data Cable | MINI-MAX / BT1 | |||
N-402-0510 | USB to Serial Adapter | MINI-MAX / BT1 | |||
N-606-0530 | USB Type 1 to Type 2 Female Data Cable | MAX II / BT2 | |||
N-110-0470 | 3m (10’) Lemo 1 5pin to BNC Analog Output Cable | MAX II / BT2 | |||
N-110-0410 | 3m (10’) Lemo 1 5pin to DB9F Serial Output Cable | MAX II / BT2 | |||
N-003-0330 | USB-C to USB TYPE A 3’ Data Cable | MINI-MAX / BT1 | |||
N-306-0416 | Universal Cable (5Pin Lemo 1-BNC, 6’ DB9 & 2 6’ Alarm Out) | MAX II / BT2 | |||
BATTERY PACKS G CHARGERS | |||||
Part Number | Description | Compatible with | |||
A-167-5004 | High Speed Shut Off Box (control a pump) – Direct Hardware | MAX II / BT2 | |||
LINE POWER ADAPTORS | |||||
Part Number | Description | Compatible with | |||
N-250-0001 | Power Adaptor, 12 volts @ 2 Amps with 1.8m (6’) Cable | MAX II / BT2 | |||
N-506-0060 | Universal Power Cord | MAX II / BT2 | |||
