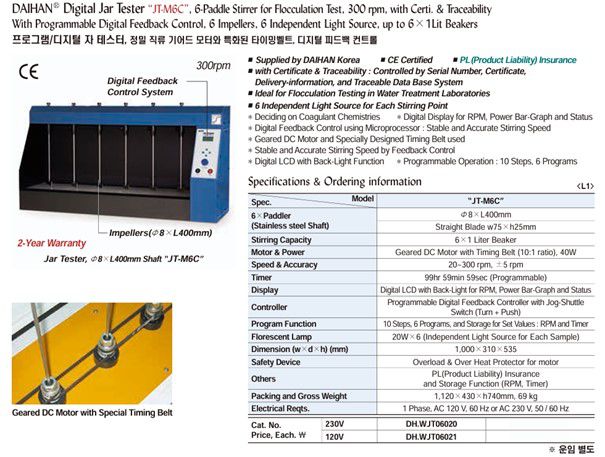

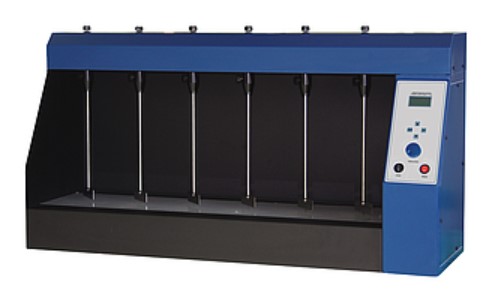

DaiHan JT-M6C 6-Paddle Stirrer ສໍາລັບການທົດສອບ Flocculation

6×Paddler (Stainless steel Shaft): Ø8 x L400 mm; straight blade w75 x h25 mm

Stirring capacity (H2O): 6 x 1 Liter beaker

Motor & Power: Geared DC Motor with Timing Belt (10:1 ratio). 40W

Speed & Accuracy: 20-300 rpm; ±5 rpm

Timer: 99hr 59min 59sec (Programmable)

Display: Digital LCD with Back-Light for RPM. Power Bar-Graph and Status

Controller: Programmable Digital Feedback Controller with Jog-Shuttle Switch (Turn + Push)

Program Function: 10 Steps. 6 Programs. and Storage for Set Values : RPM and Timer

Florescent lamp: 20W×6 (Independent Light Source for Each Sample)

Dimension & weight: 1000x310x535 mm

Safety device: Overload & Over Heat Protector for motor

Others: PL(Product Liability) Insurance and Storage Function (RPM. Timer)

Electrical Reqts: 1 Phase AC 230V. 50/60 H
