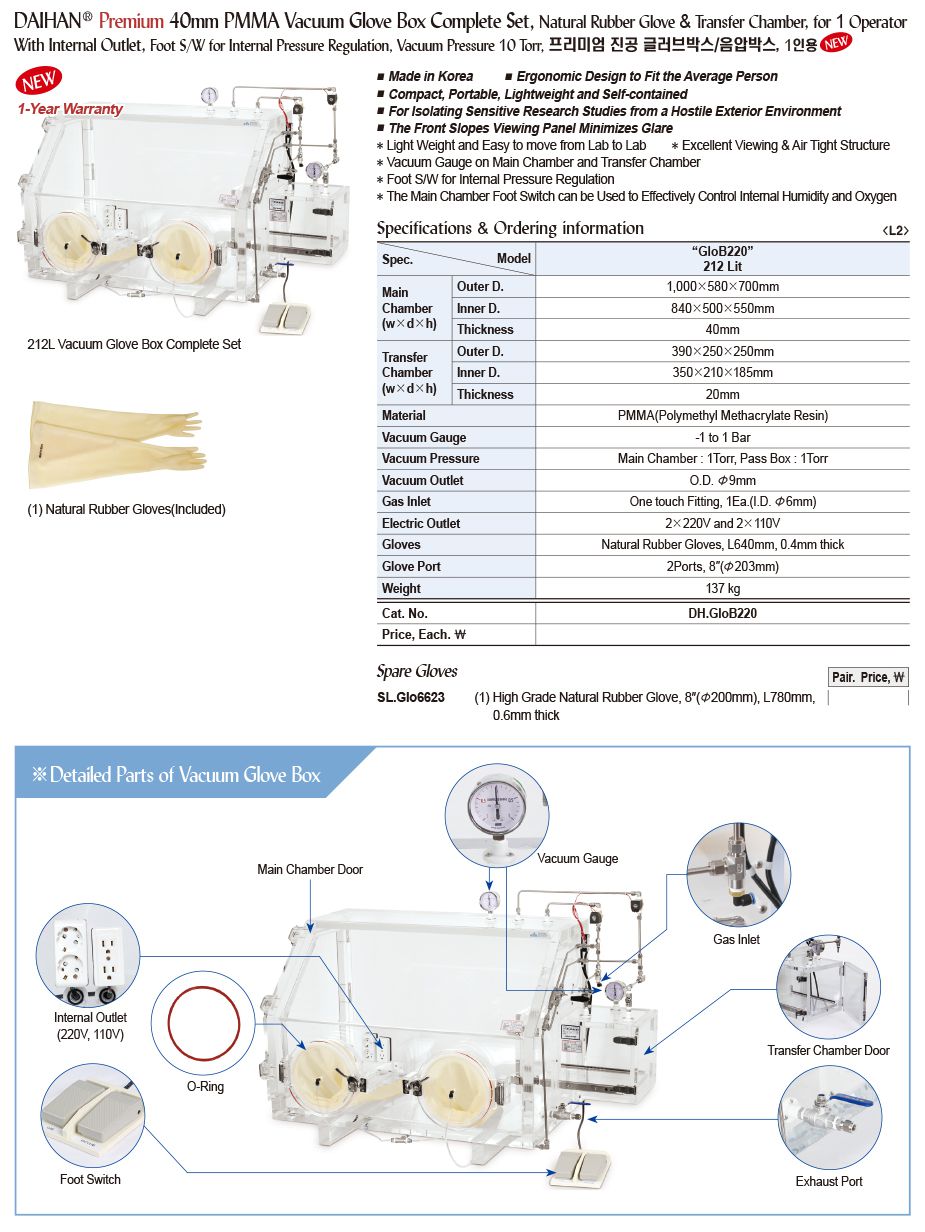

DaiHan GLOB220 ກ່ອງຖົງມືສູນຍາກາດ 40mm PmmA ຄົບຊຸດ (212 Lit, 2 Ports, 8″(Φ203mm))

212 Lit

Main Chamber (w×d×h):

- Outer D.: 1,000×580×700mm

- Inner D.: 840×500×550mm

- Thickness: 40mm

Transfer Chamber (w×d×h):

- Outer D.: 390×250×250mm

- Inner D.: 350×210×185mm

- Thickness: 20mm

Material: PMMA(Polymethyl Methacrylate Resin)

Vacuum Gauge: -1 to 1 Bar

Vacuum Pressure: Main Chamber : 1Torr, Pass Box : 1Torr

Vacuum Outlet: O.D. Φ9mm

Gas Inlet: One touch Fitting, 1Ea.(I.D. Φ6mm)

Electric Outlet: 2×220V and 2×110V

Gloves: Natural Rubber Gloves, L640mm, 0.4mm thick

Glove Port: 2 Ports, 8″(Φ203mm)

Weight: 137 kg

Datasheet
