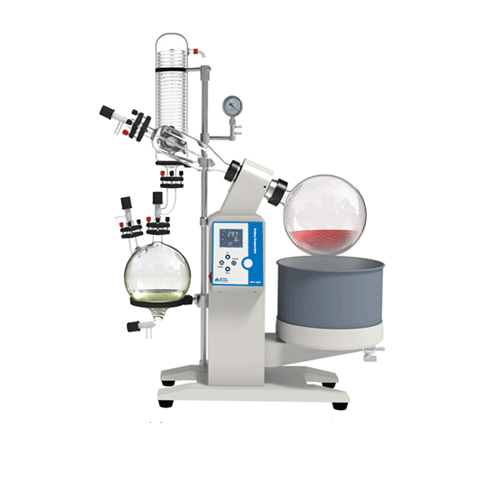

DaiHan DH.WEV01005 ດິຈິຕອລ Rotary Evaporator (5Lit., 220V; 20 ~ 140 rpm)

-Evaporating Flask: 5 Lit, Flange Opening Φ50 mm

-Receiving Flask: 3 Lit

-Condenser: Water Refrigerating

-Temp. Range: 0℃ ~ 99℃

-Rotary Speed: 20 ~ 140 rpm

-Evaporating Capability: Water : 2 Lit./h, Alcohol : 4 Lit/h

-Cooling Surface: 2700 cm2

-Achievable Vacuum: 399.9Pa(below 3mmHg)

-Functional of Lifting Tabl: Electric

-Electric Stroke: 0 ~ 150 mm

-Vacuum Sealing: PTFE and Fluorine Rubber Dual Rotating Seal

-Motor: 250 W, Phase DC Induction Motor

-Heating Boiler: Stainless steel Water Bath

-Display: Digital display

-Power Consumption: 2.3kW

-Dimension (mm): 835x400xh1090

-Electrical Reqts. 1phase, 220V, 50/60Hz
