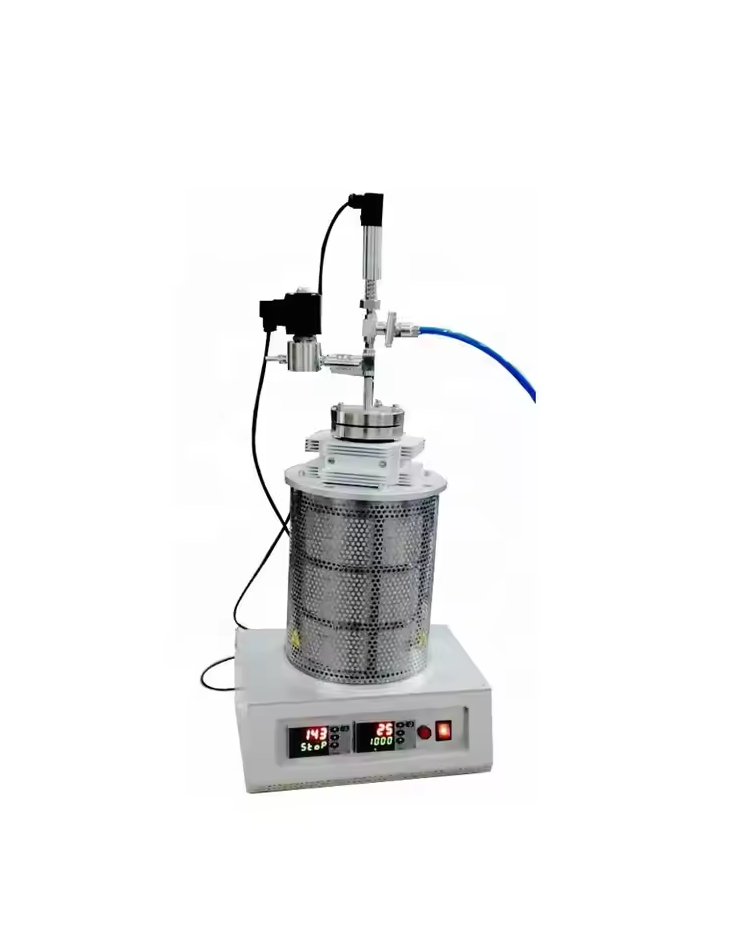

CYKY RC-NI-300 ຕົວປະຕິບັດຄວາມດັນນ້ຳຮ້ອນສູງ

Working Voltage: AC 208~240V, Single  Phase

Pressure Vessel

Made of Ni-Based Super-alloy   ( Waspaloy or equivalent  )

Air cold flange via aluminium heat radiator

Reactor Capacity & Dimensions:

70mm OD x 35mm ID x 326 mm height

300 mL capacity

Working Temperature & Controller:

RT-1100°C Max.

Digital temperature controller with 30 segment programmable

Temperature accuracy +/- 1°C

Working Pressure:

18 MPa, ≤ 800 °C

13 MPa, ≤ 900 °C

8 MPa, ≤ 1000 °C

3 MPa, ≤ 1100 °C

Accessories: SS316 needle valve with 1/4 pipe connector & Pressure gauge included

Two consumable Copper Gasket(63mm O.D) are included

Dimension: 340 mm W x 320 mm D x 820 mm H
