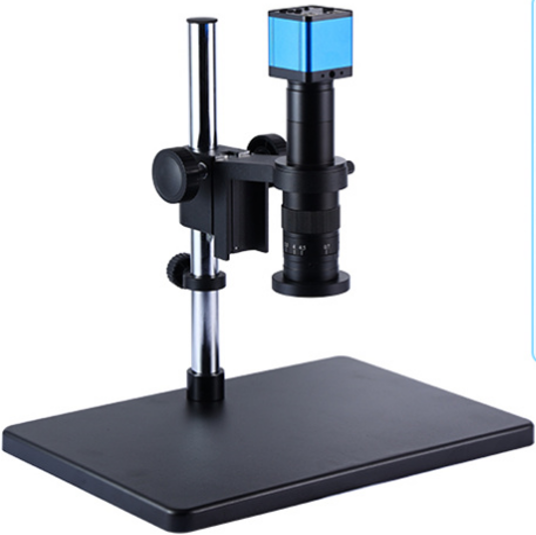

1.Monocular microscope
2.HD 20MP industrial camera
3.1 ring light source
(Purchase monitor separately）
Zoom ratio: (1:6.5) 0.7–4.5X (with 0.5X eyepiece as standard)
Working distance: 95 mm
Tube length: 168 mm
Net weight: 530 g
Magnification: 7–45X adjustable
Eyepiece magnification: 0.5X (standard), 1X optional
Objective magnification: 0.7–4.5X (approximately 10–200X on the display)
Connector: C-mount interface
①Large base(38CM*26CM) making it is stable,it not easy to tip over even when adjusted to a high angle
②The column height 33cm, lens can be moved up and down with lifting knob,enabling precise adjustment of the distance between the lens and the observed object for optimal focusing
③7-45X magnification monocular lens magnifler .Multi-magnification high-frequency zoom lens.Superior and stable optical performance,control image clarity by adjusting the magnification wheel.Meet the industrial online inspection needs of modern,electronic devices,semiconductors,mobile phone repair and more
④The zoom lens can be paired with a ring light source which provides uniform and focused illumination making lighting adjustment convenient for various observation scenarios
⑤The high-definition CCD camera supports photos capture and video record,adopts a spiral interface ensuring a more stable connection between components,and is fitted with a dust cover to conveniently protect the lens from dust and scratches during storage or non-use.
⑥dual-mode output:HDMI+USB.Connect to an external large display high-definition image quality with real-time output.
⑦Widely used in fields such as microelectronics, SMT,textiles,printing,and identification of appearance defect detection
