Product parameters
Tin feed time: 0–7 s
Speed: 6–28 rpm/min
Intervals: 0–14 s
Control mode: manual / automatic / fully automatic
Tin feed volume: 0.6–1.8 mm/s
Return tin volume: 0–6 mm (fixed speed)
Power consumption: 5W
Motor speed: 28 rpm/min

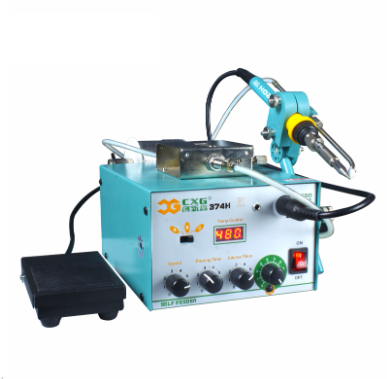

Soldering station
Model: CXG374H
Total power consumption: 120W
Motor and host power: 20W
Temperature range 200–480°C
Weight: About 3.4 kg
Input voltage: AC110V/60Hz, 220V/50Hz
Output voltage: 27V
External size: 175 × 142 × 95 mm
Soldering iron
Model: CXG374-920 / CXG374H-920H
Power consumption:
374 DC voltage 27V
374H DC voltage 27V
Iron tip ground resistance: ≤2Ω
Iron tip ground voltage: ≤2mV
Heating element: Ceramic heating core
Wire length: 0.9 m
Handle length: 190 mm
Handle weight: 44 g
Features
Automatic tin feeding system and lead-free soldering station two in one, more convenient for continuous soldering of multiple solder joints, according to different soldering needs to adjust the tin feeding speed, tin feeding time, solder joint and solder joint interval time, can achieve automatic soldering effect, high work efficiency.
Various tin feeding modes to choose from: manual/automatic/fully automatic
Manual switch and foot switch are configured.
Can adjust the amount of tin back to reduce tin waste.
Two functions to choose from, soldering iron return temperature fast, no high-frequency interference, environmental protection and energy saving.
