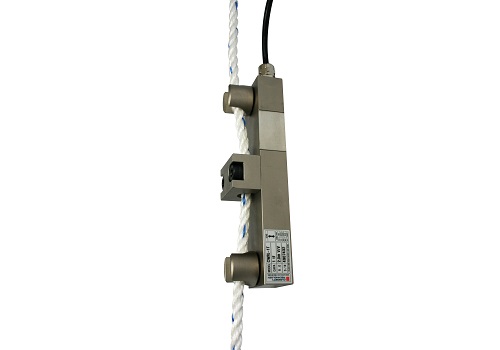

CURIOTEC CWRL-0.5T Tension Load Cell (0.5 Tf)
ຜູ້ຜະລິດ: CURIOTEC Model: CWRL-0.5T - ຕິດຕໍ່ພົວພັນ
Max.Capacity (Tf): 0.5
Rated output ( mV/V): 0.7 norminal
Zero balance ( mV/V): 0.0±0.1
Combined error (%): 2.0
Repeatability (%): 1.0
Creep (30 min.) (%): 1.0
Temperature effec on
+ Zero value (%/℃ ): 0.1
+ Output value (%/℃ ): 0.2
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 400±50
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
ລາຍລະອຽດ
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
