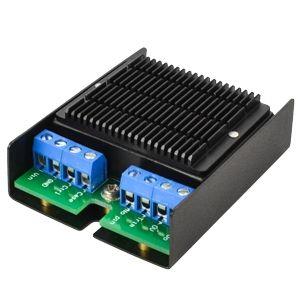

CUI Inc PYB30-Q24-T515-H-U ຕິດຕັ້ງບໍ່ຕ້ອງການດິນຕົວຈິດ DC-DC Cnvrt

Width: 55 mm

Height: 22.9 mm

Length: 67.5 mm

Industry: Industrial

Unit Weight: 78 g

Output Power: 30 W

Input Voltage: 9 V to 36 V

Mounting Style: Chassis

Isolation Voltage: 1.5 kV

Number of Outputs: 3 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 3 A

Output Current-Channel 2: 500 mA

Output Current-Channel 3: 500 mA

Output Voltage-Channel 1: 5 V

Output Voltage-Channel 2: 15 V

Output Voltage-Channel 3: - 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
