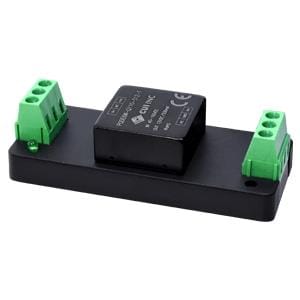

CUI Inc PQDE6W-Q110-D15-T ສະແຕກຕ່າງ ຂອງບໍລິສັດຂະບວນການຜະລິດ ບໍ່ຮັບສັ່ງຊື້ສິນຄ້ານີ້ໃນປັດຈຸບັນ

Width: 31.5 mm

Height: 21.2 mm

Length: 76 mm

Industry: Industrial

Dimensions: 76 mm x 31.5 mm x 21.2 mm

Output Power: 6 W

Input Voltage: 40 V to 160 V

Mounting Style: Chassis

Isolation Voltage: 2.25 kV

Number of Outputs: 2 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 40 V

Input Voltage, Nominal: 110 V

Output Current-Channel 1: 200 mA

Output Current-Channel 2: 200 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
