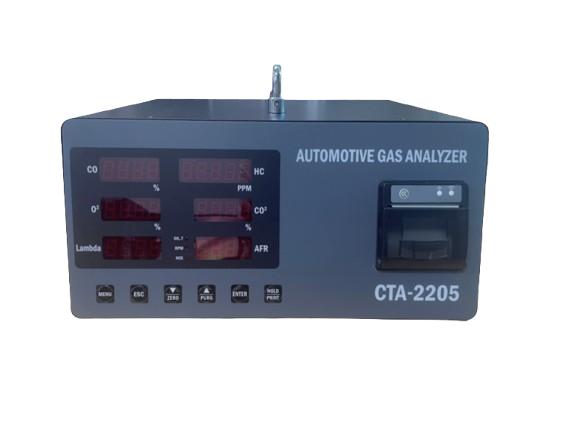

CT&G CTA-2205 ເຄື່ອງວິເຄາະການປ່ອຍອາຍພິດຂອງລົດຍົນ (CO, HC, CO2, O2, λ (air surplus rate), AFR, NOx (optional))
Measuring items: CO, HC, CO2, O2, λ (air surplus rate), AFR, NOx (optional)
Measuring method: CO, HC, CO2 by NDIR method; O2, NOx by electrochemical cell
CO measuring range: 0.00 – 9.99 %
CO resolution: 0.01 %
CO display: 4-digit 7-segment LED
HC measuring range: 0 – 9999 ppm
HC resolution: 1 ppm
HC display: 4-digit 7-segment LED
CO2 measuring range: 0.0 – 20.0 %
CO2 resolution: 0.1 %
CO2 display: 4-digit 7-segment LED
O2 measuring range: 0.00 – 25.00 %
O2 resolution: 0.01 %
O2 display: 4-digit 7-segment LED
Lambda (λ) measuring range: 0.0 – 2.000%
Lambda (λ) resolution: 0.001%
Lambda (λ) display: 4-digit 7-segment LED
NOx measuring range (optional): 0 – 5000 ppm
NOx resolution (optional): 1 ppm
NOx display (optional): 4-digit 7-segment LED
Repeatability: Less than ±2% FS
Response time: Within 10 seconds (more than 90%)
Warming up time: About 5 – 6 minutes
Sample collecting quantity: 4 L/min
Power supply: AC110V or AC220V ±10%, 50/60Hz
Power consumption: About 50 W
Operation temperature: -10°C – 40°C
Dimensions: 370 (W) × 300 (D) × 165 (H) mm
Weight: About 7 kg
Basic accessories: Probe, hose, spare fuse, leak test cap, spare filter, operation manual, power cord
Options: RS232 communication cable, printer, printer paper
