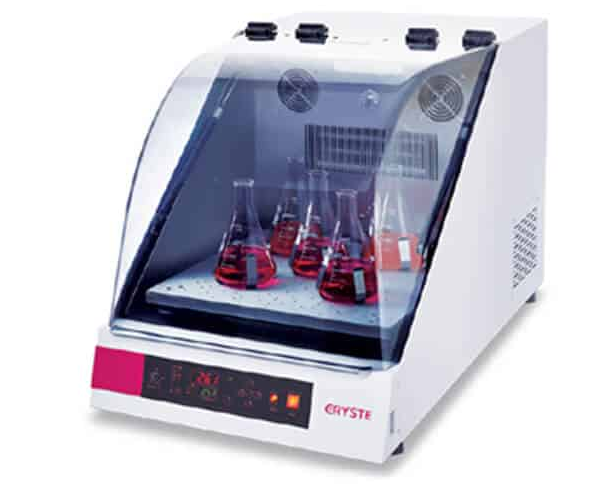

CRYSTE PURICELL SHAKING 80 ຕູ້ອົບສັ່ນ (20~300 rpm)

Size

Inner(W x D x H)mm: 505 x 550 x 420

Out(W x D x H)mm: 540 x 875 x 575

Platform(W x D)mm: 450 x 450

Weight(Kg): 100

Controller: Standard : Digital PID controller

Inside Material: Stainless steel plate 304

Outside Material: Epoxy powder coated steel plate

Door Material: Polycarbonate

Shaking Platform: Standard: Universal tray + Sticky pad(4EA/Set)

Lamp: LED lamp

Temperature

Range: 15℃ ~ 65℃

Wait On Timer: 59m.59s / 59h.59m / continuous

Control: Forced convection(Direct heating & cooling)

Shaker

Motion: Clockwise

Speed Range: 20~300 RPM at floor / 20~200 RPM at table

Wait Off Timer: 59m.59s / 59h.59m / continuous

Throw: 25mm

Compressor: 1/5HP, Non-CFC

Power: AC 230V ±10%, 60Hz, 1Phase

Power Consumption: 330W

Safety: Over heat protector, Fuse installed noise filter, Heat protective barrier of controller box,

Cooling fan for motor

OPTION

Change To Universal Tray Without Sticky Pad PCS-8-R-OP1

Change To Spring Rack(453x453mm) PCS-8-R-OP2

Flask Holder 100ml(Stainless) PCS-8-R-OP3

Flask Holder 250ml(Stainless) PCS-8-R-OP4

Flask Holder 500ml(Stainless) PCS-8-R-OP5

Flask Holder 1000ml(Stainless) PCS-8-R-OP6

Flask Holder 2000ml(Stainless) PCS-8-R-OP7

SPARE

Universal Tray PCS-8-R-SP1

Spring Rack PCS-8-R-SP2

Sticky Pad(1EA) PCS-8-R-SP3

Heater PCS-8-R-SP4

Shaking Motor(60Hz) PCS-8-R-SP5

Shaking Motor(50Hz) PCS-8-R-SP6

Door Cover PCS-8-R-SP7

Mainboard & Controller PCS-8-R-SP8
