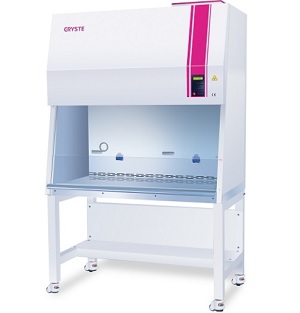

CRYSTE PURICUBE NEO 900 ຕູ້ຄວາມປອດໄພ (UV lamp: 20W x 1EA FL Lamp: 55W x 1EA)

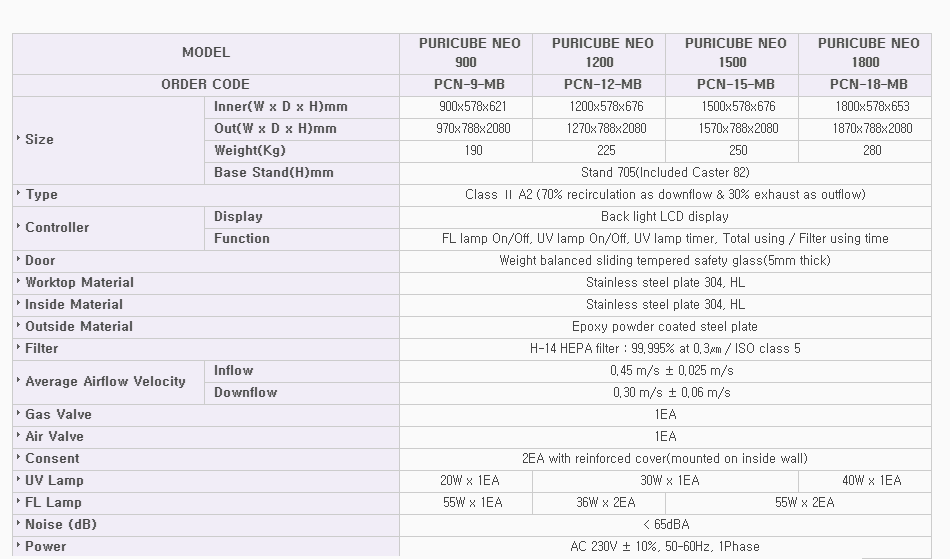

Size

Inner(W x D x H)mm: 900x578x621

Out(W x D x H)mm: 970x788x2080

Weight: 190kg

Base Stand(H)mm: Stand 705(Included Caster 82)

Type: Class Ⅱ A2 (70% recirculation as downflow & 30% exhaust as outflow)

Controller:

Display: Back light LCD display

Function: FL lamp On/Off, UV lamp On/Off, UV lamp timer, Total using / Filter using time

Door

Weight balanced sliding tempered safety glass(5mm thick)

Worktop Material: Stainless steel plate 304, HL

Inside Material; Stainless steel plate 304, HL

Outside: Epoxy powder coated steel plate

Filter: H-14 HEPA filter : 99.995% at 0.3㎛ / ISO class 5

Average Airflow Velocity:

Inflow: 0.45 m/s ± 0.025 m/s

Downflow: 0.45 m/s ± 0.025 m/s

Gas Valve: 1EA

Air valve: 1EA

Consent: 2EA with reinforced cover(mounted on inside wall)

UV lamp: 20W x 1EA

FL Lamp: 55W x 1EA

Noise (dB): < 65dBA

Power: AC 230V ± 10%, 50-60Hz, 1Phase

Safety: UV lamp automatic switch-off when door's opened, Fuse installed each electric part,

Filter life span alarm with buzzer and display on screen

Optional Accessories:

Filter

Pressure gauge
