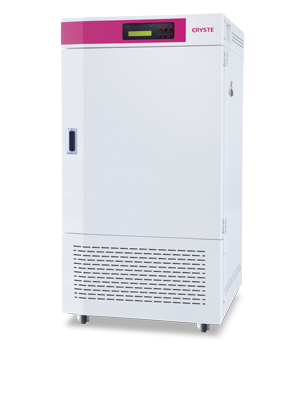

CRYSTE PURICELL LOW 150 ຕູ້ອົບອຸນຫະພູມຕໍ່າ (150L)

Size

Inner(W x D x H)mm: 530 x 485 x 630

Out(W x D x H)mm: 675 x 772 x 1322

Capacity: 150L

Weight(Kg): 138

Controller: Standard : Digital PID controller

Inside Material: Stainless steel plate 304

Outside Material: Epoxy powder coated steel plate

Shelf: Perforated Stainless Steel Shelves

(2EA included / Up to 6EA)

Shaking Platform: Standard: Universal tray + Sticky pad(4EA/Set)

Lamp: LED lamp

Temperature

Range: 15℃ ~ 65℃

Sensor Type: PT 100Ω

Control: Forced Convection ( Direct heat )

Compressor: 1/5HP, Non-CFC

Power: AC 230V ±10%, 60Hz, 1Phase

Power Consumption: 1,235W

Safety: Over heat protector, Fuse installed noise filter, Earth leakage circuit breaker

OPTION

Change To Stainless Shelf(Wire) PCLL-15-OP1

Thermal Printer N/A PCLL-15-232-OP2

Stainless Shelf(Wire) PCLL-15-SP2

Heater PCLL-15-SP3 PCLL-15-232-SP3

Fan Motor PCLL-15-SP4

Mainboard & Controller PCLL-15-SP5

Mainboard & Controller

(Option) PCLL-15-SP6

Thermal Printer(Option) PCLL-15-SP7 PCLL-25-232-SP7

Electricity Leakage Breaker PCLL-15-SP8
