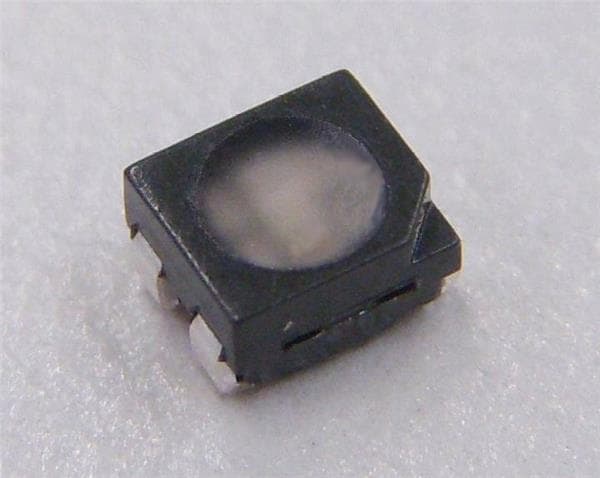

Cree LED CLVBA-FKA-CAEDH8BBB7a363 ໄຟ LED ຫຼາຍສີ 120DG RD/GR/BL BK BD 470,527,620NM

Width: 2.8 mm

Height: 1.9 mm

Length: 3.2 mm

Lens Color: Colorless

Lens Shape: Round Flat

Unit Weight: 103 mg

Power Rating: 130 mW, 100 mW, 100 mW

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.4 mm

Lens Transparency: Clear

Illumination Color: RGB

Luminous Intensity: 71 mcd, 140 mcd, 36 mcd

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.9 V, 3 V, 3 V

Vr - Reverse Voltage: 5 V

Wavelength/Color Temperature: 630 nm, 527 nm, 470 nm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
