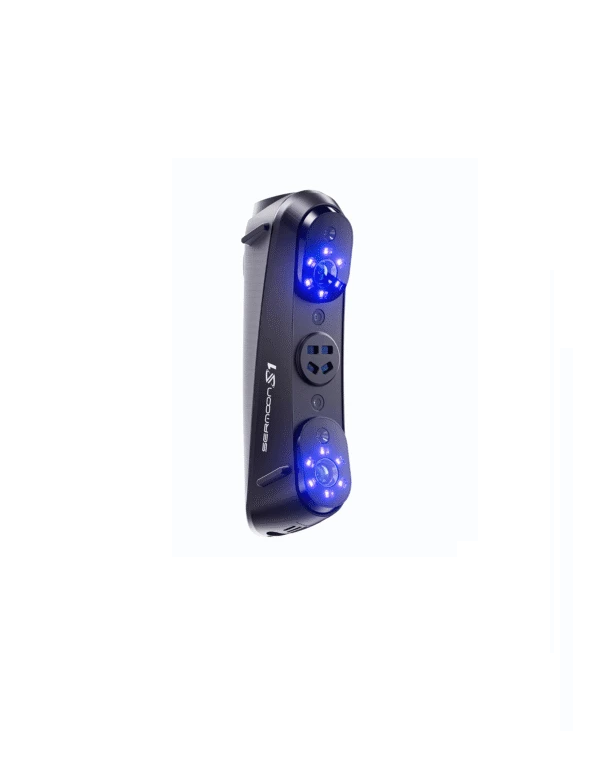

Creality Sermoon S1 ເຄື່ອງສະແກນ 3D
Scanning Mode
Single Blue Laser Line
7 Parallel Blue Laser Lines
34 Cross Blue Laser Lines
Close-Range Infrared Structured Light
Long-Range Infrared Structured Light
Accuracy
Single Blue Laser Line: Up to 0.02mm[1]
7 Parallel Blue Laser Lines: Up to 0.02mm[1]
34 Cross Blue Laser Lines: Up to 0.02mm[1]
Close-Range Infrared Structured Light: Up to 0.075mm
Long-Range Infrared Structured Light: Up to 0.075mm
Volumetric Accuracy
Single Blue Laser Line: 0.02mm+0.08mm/m
7 Parallel Blue Laser Lines: 0.02mm+0.08mm/m
34 Cross Blue Laser Lines: 0.02mm+0.08mm/m
Close-Range Infrared Structured Light: 0.075mm+0.1mm/m
Long-Range Infrared Structured Light: 0.075mm+0.1mm/m
Scanning rate
Single Blue Laser Line: 108,000 measurements/s
7 Parallel Blue Laser Lines: 756,000 measurements/s
34 Cross Blue Laser Lines: 1,428,000 measurements/s
Close-Range Infrared Structured Light: 4,600,000 measurements/s
Long-Range Infrared Structured Light: 4,600,000 measurements/s
3D Resolution
Single Blue Laser Line:0.05-2mm
7 Parallel Blue Laser Lines: 0.05-2mm
34 Cross Blue Laser Lines: 0.05-2mm
Close-Range Infrared Structured Light: 0.1-2mm
Long-Range Infrared Structured Light: 0.1-2mm
Scanning Speed
Single Blue Laser Line:Up to 90fps
7 Parallel Blue Laser Lines:Up to 90fps
34 Cross Blue Laser Lines: Up to 90fps
Close-Range Infrared Structured Light: Up to 30fps
Long-Range Infrared Structured Light: Up to 30fps
Min. scan volume
Single Blue Laser Line:5mm x 5mm x 5mm
7 Parallel Blue Laser Lines:5mm x 5mm x 5mm
34 Cross Blue Laser Lines: 5mm x 5mm x 5mm
Close-Range Infrared Structured Light:150mm x 150mm x 150mm
Long-Range Infrared Structured Light: 150mm x 150mm x 150mm
Single Capture Range
Single Blue Laser Line:
205mm x 147mm@200mm
293mm x 217mm@300mm
355mm x 289mm@400mm
417mm x 361mm@500mm
506mm x 433mm@600mm
7 Parallel Blue Laser Lines:
205mm x 147mm@200mm
293mm x 217mm@300mm
355mm x 289mm@400mm
417mm x 361mm@500mm
506mm x 433mm@600mm
34 Cross Blue Laser Lines:
205mm x 147mm@200mm
293mm x 217mm@300mm
355mm x 289mm@400mm
417mm x 361mm@500mm
506mm x 433mm@600mm
Close-Range Infrared Structured Light:
293mm x 217mm @300mm
417mm x 361mm @500mm
Long-Range Infrared Structured Light:
689mm x 375mm @500mm
1245mm x 754mm @1000mm
Working distance
Single Blue Laser Line:200mm-600mm
7 Parallel Blue Laser Lines: 150mm-400mm
34 Cross Blue Laser Lines: 200-600mm
Close-Range Infrared Structured Light: 170mm-500mm
Long-Range Infrared Structured Light: 200mm-1200mm
Device Weight: 508g
Size: 225mm×53mm×76mm
Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in Conjunction with Wireless Scanning Accessories
System Support
Windows/macOS
Android/iOS (Requires Wireless Scanning Accessories)
Operating temperature: -10°C to 40°C
Operating humidity: 10-90%RH
