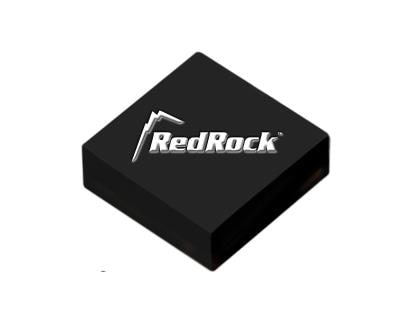

Coto Technology RR122-1A22-512 TMR Digital Omnidirectional OMNIPOLAR 9/5 AT 10Hz PUSH-PULL OUTPT

Output Type: Push Pull

Sensitivity: 9 G

Unit Weight: 115.440 g

Mounting Style: SMD/SMT

Termination Style: SMD / SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Maximum Output Current: 20 mA

Operating Point Min/Max: 8 G, - 12 G / 12 G, - 8 G

Operating Supply Current: 140 nA

Operating Supply Voltage: 1.7 V to 5.5 V

Release Point Min/Max (Brp): 3 G, - 7 G / 7 G, - 3 G

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
