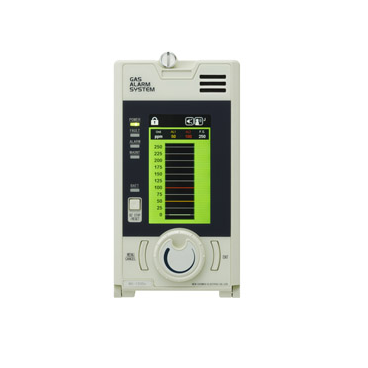

COSMOS NV-120Dx ລະບົບເຕືອນໄພແກັດຈຸດດຽວ (KS-2D; PS-2DP)
Connectable Detectors: KS-2D; PS-2DP
Power Supply: AC type: 100 to 240 VAC +10% or DC: 24 VDC (18 to 26.4 VDC)
Power Consumption:
+ Non-backup power type: 2.0 VA (Standard)/3.4 VA (Max)
+ Backup power type: 2.1 VA (Standard)/4.7 VA (Max)
External Output
+ Power output: 24 VDC +10% Max.0.3 A
+ Signal output: 4-20 mA analog or 1-5 V In the event of failure: ≤ 0.6 mA (for 4-20 mA type) and ≤ 0.25 V (for 1-5 V type)
+ Alarm1, Alarm2, Fault
+ Energised/de-energised & latching, non-latching
Operating Temperature:
+ Non-backup power type: -10 to +50 °C;
+ Backup power type: 0 to +40 °C
Operating Humidity: 0 to 90 %RH
Dimensions:
+ Non-backup power type: W113 mm x D77 mm x H219 mm;
+ Backup power type: W113 mm x D115 mm x H234 mm
Weight:
+ Non-backup power type: Approx. 750 g;
+ Backup power type: Approx. 2.2 kg
