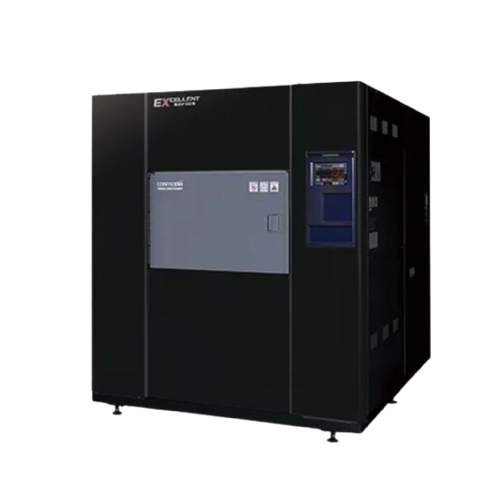

Cosmopia ES-76EX ອຸປະກອນທົດສອບການຊ໊ອກຄວາມຮ້ອນປະເພດການໄຫຼຂອງອາກາດ (150℃/15 min; －65℃/15 min; 70L)
Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Testing temperature range: Low-temperature testing: -70 to 0℃, High-temperature testing: 80 to 200℃
Temperature fluctuation margin: ±0.5℃
Temperature rise time (high-temperature chamber): Room temperature to 200℃: Within 25 min.
Temperature drop time (low-temperature chamber): Room temperature to -75℃: Within 70 min.
Temperature cycle performance:
- Cycles: Continuous operation cycles possible: 1,000
- Testing chamber temperature / Testing time (High): +150℃/15 min.
- Testing chamber temperature / Testing time (Low): －65℃/15 min.
- Temperature measurement position: Downwind side
- Sample Type: Plastic molded IC
- Sample Weight: 5 kg (IC 3.5 kg + single-stage jig 1.5 kg)
- Temperature return time: Within 5 min.
Permissible sample weight inside testing chamber: Max. 30 kg (floor surface 20 kg or less, sample shelf 5 kg or less [per shelf])
Testing chamber volume: 70 L
Testing chamber dimensions (W × D × H): 315 × 495 × 460 mm
Product dimensions (W × D × H): 1,565 × 1,640 × 1,980 mm
Exterior: Dark gray finish
Cooling method: Water-cooling, dual refrigeration, refrigerant: R404A (high-temperature side), R23 (low-temperature side)
Safeguards: Earth leakage circuit breaker, electric motor overload safeguard, electrical fuse, excess temperature increase prevention system, operation with door open prevention switch, temperature fuse, and high-voltage shutdown system for refrigerator
Accessories: Cable hole rubber plug × 1, sample shelf × 2, shelf support × 4, operation circuit protection fuse × 2, instruction manual × 1, and Y strainer × 2
Operational noise: 65 dB(A)
Dry air (Pressure): 0.4 to 0.7 MPa
Dry air (Consumption): Approx. 7.6 L(ANR) per cycle
Coolant: Volume: 4,200 L/h (coolant inlet temperature 32℃), Pressure: 0.1 to 0.5 MPa
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load power supply / [Power supply capacity]: 120 A / 42 kVA
Product weight: 1,600 kg
