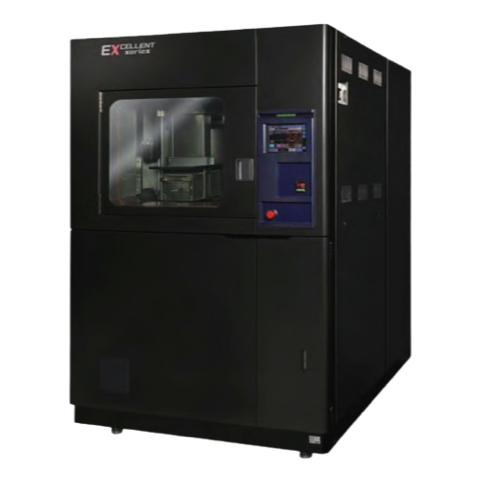

Cosmopia ES-66EX-L ອຸປະກອນທົດສອບການຊ໊ອກຄວາມຮ້ອນປະເພດແຫຼວ (150℃/90 min; －65℃/90 min; 5.6L)
Type: Sample basket suspension transport liquid Type, two zones
Testing temperature range: Low-temperature testing: －70 to 0℃, High-temperature testing: 70 to 150℃
Temperature fluctuation margin: ±2℃
Temperature rise time (high-temperature chamber): Room temperature to 150℃: Within 90 min.
Temperature drop time (low-temperature chamber): Room temperature to －65℃: Within 90 min.
Temperature cycle:
- Cycles: 25 cycles (low-temperature start)
- Sample Type: Plastic molded IC
- Sample Weight: 2.6 kg (IC 2.0 kg + sample basket 0.6 kg)
- Test zones: Low/high temperature
- Testing chamber temperature (Low/high): －65 / 150℃
- Testing time: 5 min
Sample basket transport time: 10 seconds
Exterior coating color: Dark gray finish
Product dimensions (W × D × H): 1,300 × 1,300 × 1,982 mm
Sample basket:
- Volume: 5.6 L
- Dimensions (W × D × H): 185 × 200 × 150 mm
- Loadable sample weight: 4 kg
Refrigeration method: Air-cooling, dual refrigeration
Refrigerant: Dual high-temperature side: R404A, Dual low-temperature side: R23
Equipment: Casters, level adjusters
Safeguards: Earth leakage circuit breaker for power supply, electric motor overload safeguard, high-voltage shutdown system for refrigerator, float switch, excess temperature increase prevention system (for samples), operation with door open prevention switch, and fuse
Accessories: Sample basket × 1, fuse × 2, and instruction manual × 1
Heat medium liquid:
- Type: One-component or two-component
- For high-temperature chamber: Galden D02TS (approx. 76 kg): 43 L (at 25℃)
- For low-temperature chamber: Galden D02TS (approx. 110 kg): 62 L (at 25℃)
- For water separator: Galden D02TS (approx. 3.5 kg): 2 L (at 25℃)
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current / Power supply capacity: 47 A / 16 kVA
Product weight: 760 kg (not including heat medium liquid weight)
