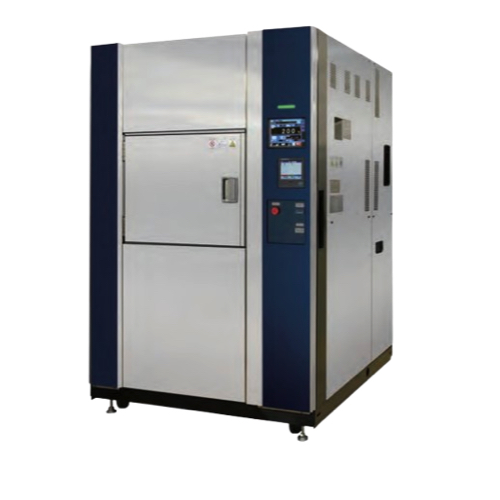

Cosmopia ES-107L ອຸປະກອນທົດສອບການຊ໊ອກຄວາມຮ້ອນປະເພດການໄຫຼຂອງອາກາດ (105L; －75℃/70 min)
Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Temperature range (testing chamber):
Low-temperature testing: －70 to 0℃
High-temperature testing: 60 to 200℃
Temperature fluctuation margin: ±0.5℃
Temperature rise time (high-temperature chamber): Room temperature to 200℃: Within 15 min.
Temperature drop time (low-temperature chamber): Room temperature to －75℃: Within 70 min.
Temperature cycle performance:
- Cycles: 5 cycles (low-temperature start)
- Sample Type: Plastic molded IC
- Sample Weight: 5 kg (IC 3.5 kg + jig 1.5 kg)
- Testing chamber temperature / Testing time (Low): －55℃/30 min.
- Testing chamber temperature / Testing time (Room): Atmosphere temperature/5 min.
- Testing chamber temperature / Testing time (High): 150℃/30 min.
- Temperature measurement position: Upwind side
- Temperature return time: Within 5 min.
Cooling method: Air-cooling (internal)
Exterior: Stainless steel plate (SUS430, hairline finish)
Testing chamber volume: 105 L
Testing chamber dimensions (W × D × H): 470 × 485 × 460 mm
Product dimensions (W × D × H): 1,380 × 1,270 × 1,980 mm
Permissible sample weight inside testing chamber: 50 kg
Refrigerant type:
High-temperature side: R404A
Low-temperature side: R23
Operational noise: 65 dB(A)
Safeguards: Earth leakage circuit breaker, electric motor overload safeguard, electrical fuse, high-voltage shutdown system for refrigerator, operation with door open prevention switch, excess temperature increase prevention system, and temperature fuse
Accessories: Cable hole soft silicon plug × 1, sample shelf × 2, shelf support × 4, operation circuit protection fuse × 2, and instruction manual × 1
Dry air (Pressure): 0.4 to 0.7 MPa
Dry air (Consumption): Approx. 7.6 L(ANR) per cycle
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current / Power supply capacity: 60 A / 21 kVA
Product weight: 800 kg
