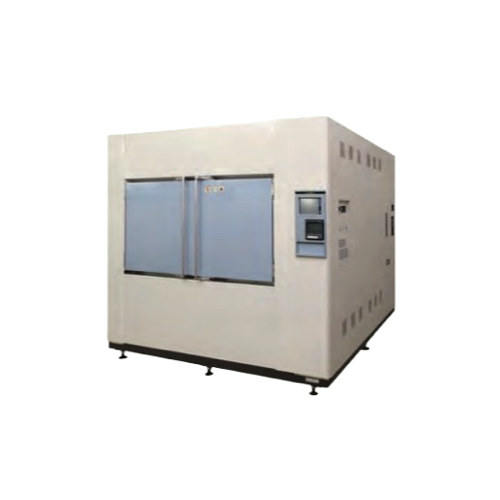

Cosmopia ES-1006L-R ອຸປະກອນທົດສອບການຊ໊ອກຄວາມຮ້ອນປະເພດການໄຫຼຂອງອາກາດ (130℃/30 min.;− 70℃/75 min; 1,080 L)
Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Testing temperature range:
Low-temperature testing: −50 to -10℃
High-temperature testing: 60 to 120℃
Temperature fluctuation margin: ±0.5℃
Temperature rise time (high-temp chamber): Room temperature to 130℃: Within 30 min.
Temperature drop time (low-temp chamber): Room temperature to −70℃: Within 75 min.
Temperature cycle performance:
Cycles: 5 cycles (low-temperature start)
Testing chamber temperature/time (Low): −35℃ / 30 min.
Testing chamber temperature/time (High): 85℃ / 30 min.
Temperature measurement position: Upwind side
Sample Type: Plastic molded IC, iron block
Sample weight / Temperature return time:
50 kg (equivalent to iron block) / Within 5 min.
100 kg (equivalent to iron block) / Within 10 min.
Cooling method: Air-Cooling Remote Condenser Type
Exterior: Cold-rolled steel plate, natural gray (Munsell code: 1.0Y8.5/0.5)
Testing chamber volume: 1,080 L
Testing chamber dimensions (W×D×H): 1,450 × 1,000 × 750 mm
Product dimensions (W×D×H): 2,355 × 1,805 × 2,200 mm
Permissible sample weight inside testing chamber: 100 kg (sample and shelf 25 kg × 4 shelves or less)
Refrigerant type: High-temperature side: R404A, Low-temperature side: R23
Operational noise: 65 dB(A)
Dry air: Pressure: 0.4 to 0.7 MPa, Consumption: Approx. 7.6 L(ANR) per cycle
Coolant amount: -
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current / Power supply capacity: 159 A / 55 kVA
Product weight: 1,800 kg
Air-Cooling Remote Condenser: 135kg
