Cosmopia ER-105EXNH-R ຫ້ອງອຸນຫະພູມ ແລະ ຄວາມຊຸ່ມຊື່ນແບບຍ່າງເຂົ້າໄດ້ (－10 ~ 80℃; 20 ~ 95%RH; 9.7m²)

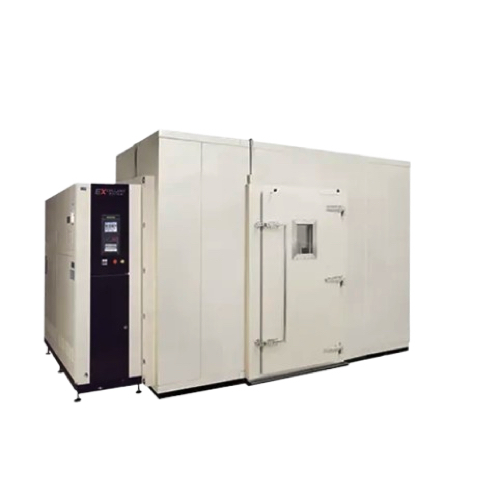

Walk-in type temperature and humidity chambers: Air-cooling Remote Condenser Type

Temperature range: -10 to 80 °C

Humidity range: 20 to 95%RH

JTM K09

Temperature/humidity fluctuation: ±0.3 / ±2.5 %

Temperature/humidity gradient: ±2.5 / ±8.0 %

Spatial temperature/humidity deviation: ±2.0 / ±5.0 %

Temperature change rate (Rise): 2.0°C/min. (-1 to 71°C)

Temperature change rate (Drop): 1.2°C/min. (71 to -1°C)

Time to reach extreme temperatures (Rise): Within 50 min. (20 to 80°C)

Time to reach extreme temperatures (Drop): Within 60 min. (20 to -10°C)

Testing room floor space: 9.7 m²

External dimensions (Width x Depth x Height): 3,600 x 2,700 x 2,325 mm

Internal dimensions (Width x Depth x Height): 3,450 x 2,550 x 2,100 mm

Exterior/interior materials: Color steel plate (ivory) / stainless steel plate

Floor load capacity: 5.9 kN/m²

Door (width x height): 830 x 1,800 single opening, 1 location

Observation window (width x height): 190 x 320 door area, 1 location

Inner light (60 W capacity): 2 Qty.

Cable hole: ø50, 1 location (with rubber plug)

Temperature (humidity) control unit: EU-125EXNH-R

Defrosting method: Off-cycle defrosting (refrigerator operation stopped, room temperature 5 to 40°C), temperature-increase defrosting (room temperature -40/-30/-10 to 5°C)

Power supply: Three-phase 200V 50/60Hz

Maximum load current: 90 A

ELB capacity: 125 A

Remote condenser: RCR-R6S

Connected units: 1 Unit

External dimensions (Width x Depth x Height): 850 x 315 x 1,240 mm

Connection piping (Refrigerant gas side): ø15.88 copper pipe x 1

Connection piping (Refrigerant liquid side): ø12.7 copper pipe x 1
