Temperature range: -40 to 100 ℃
Humidity range: 10 to 98 %RH
JTM K09
Temperature / humidity fluctuation: ±0.5 ℃ / ±3.0 %RH
Temperature / humidity gradient (Normal control range): 4.0 / 8.0 ℃ / %RH
Temperature / humidity gradient (Low-temperature/humidity range): 6.0 / 8.0 ℃ / %RH
Spatial temperature / humidity deviation (Normal control range): 3.0 / 5.0 ℃ / %RH
Spatial temperature / humidity deviation (Low-temperature/humidity range): 5.0 / 5.0 ℃ / %RH
Temperature change rate (Drop): 1.5 ℃/min. (86 to -26 ℃)
Temperature change rate (Rise): 3.0 ℃/min. (-26 to 86 ℃)
Time to reach temperature extreme (Drop): Within 70 min. (20 to -40 ℃)
Time to reach temperature extreme (Rise): Within 40 min. (20 to 100 ℃)

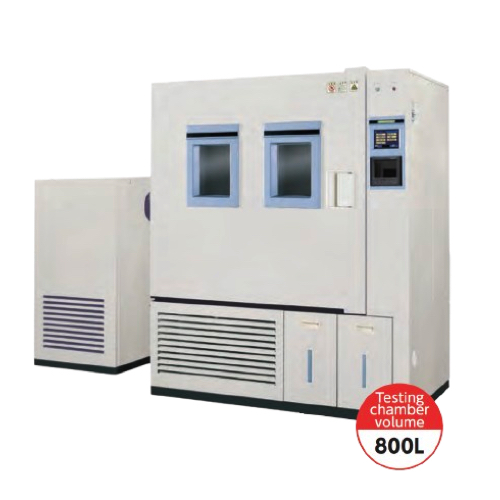

Testing chamber volume: 800 L (Width 1,000 x Depth 800 x Height 1,000 mm)
Product dimensions (System): Width 1,400 × Depth 1,170 × Height 1,795 mm
Product dimensions (Dehumidification unit): Width 606 × Depth 907 × Height 1,246 mm
Exterior coating color: Natural gray (Munsell code: 1.0Y8.5/0.5)
Cooling method: Air-cooling, single-stage compression refrigeration
Refrigerant: R404A
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current: 40 A
Product weight: System: 520 kg / Dehumidification unit: 100 kg
Guaranteed performance range: Temperature: 5 to 30 ℃, Absolute humidity: 17.5 g/kg or lower (during low-temperature/humidity control)
