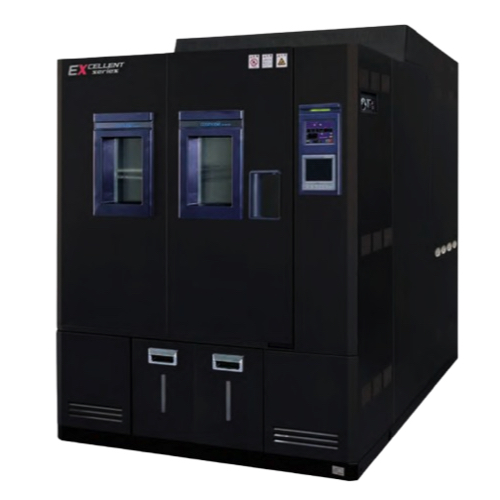

Cosmopia EC-85EX-HL ຫ້ອງອຸນຫະພູມ ແລະ ຄວາມຊື້ນ (-70 ~ 150 ℃; 20 ~ 98 %RH; 800L; 62 A)

Temperature range: -70 to 150 ℃

Humidity range: 20 to 98 %RH

JTM K09

Temperature/humidity fluctuation (100.0℃ or lower): ±0.3 / ±3.0 ℃/%RH

Temperature/humidity fluctuation (100.1℃ or higher): ±0.5 ℃

Temperature/humidity gradient (100.0℃ or lower): 3.0 / 10 ℃/%RH

Temperature/humidity gradient (100.1℃ or higher): 5.0 ℃

Spatial temperature/humidity deviation (100.0℃ or lower): 2.0 / 8.0 ℃/%RH

Spatial temperature/humidity deviation (100.1℃ or higher): 3.0 ℃

Temperature change rate (Drop): 2.5℃/min. (128 to -48℃)

Temperature change rate (Rise): 5.0℃/min. (-48 to 128℃)

Time to reach temperature extreme (Drop): Within 45 min. (20 to -70℃)

Time to reach temperature extreme (Rise): Within 45 min. (20 to 150℃)

Testing chamber volume (L(mm)): 800 (Width 1,000 x Depth 800 x Height 1,000)

Product dimensions (mm): Width 1,470 × Depth 1,800 × Height 2,020

Exterior coating color: Dark gray finish

Cooling method: Water-cooling, dual refrigeration

Refrigerant: Dual side: R404A (high-temperature side), R23 (low-temperature side)

Controller: Operation modes: Set-point or program operation (Steps: 20 per pattern, Repetitions: Max. 98 and infinite)

Safeguards: Earth leakage circuit breaker, operation circuit fuse, electric motor overload safeguard, high-voltage shutdown system, excess temperature increase prevention system, empty heating prevention system, heater overcurrent safeguard, etc.

Equipment: Observation window, chamber light, cable hole, casters, level adjusters, and auto water supply connection port

Accessories: Shelf support, shelf, fuse, Y strainer, wick, rubber plug, and instruction manual

Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz

Maximum load current: 62 A

Product weight: 700 kg
