Temperature/humidity range: -40 to 100 ℃ / 20 to 98 %RH

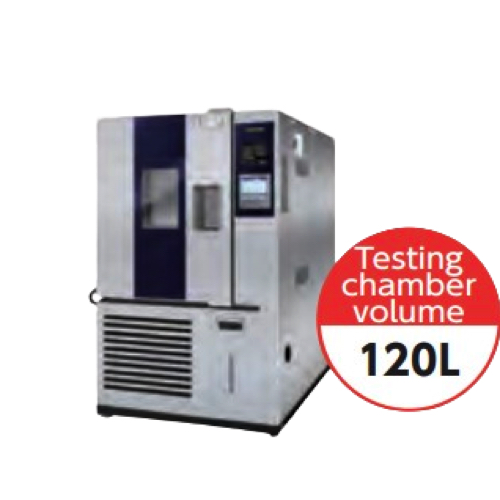

JTM K09
Temperature/humidity fluctuation (100.0℃ or lower): ±0.3 / ±2.5 ℃/%RH
Temperature/humidity fluctuation (100.1℃ or higher): –
Temperature/humidity gradient (100.0℃ or lower): 3.0 / 10 ℃/%RH
Temperature/humidity gradient (100.1℃ or higher): –
Spatial temperature/humidity deviation (100.0℃ or lower): 1.5 / 5 ℃/%RH
Spatial temperature/humidity deviation (100.1℃ or higher): –
Temperature change rate (Drop): 2.0℃/min. (86 to -26℃)
Temperature change rate (Rise): 3.0℃/min. (-26 to 86℃)
Time to reach temperature extreme (Drop): Within 60 min. (20 to -40℃)
Time to reach temperature extreme (Rise): Within 30 min. (20 to 100℃)
Exterior: Stainless steel plate (SUS430, hairline finish)
Testing chamber volume: 120 L
Testing chamber dimensions (w x d x h): 500 x 380 x 630 mm
Product dimensions (w x d x h): 900 x 770 x 1425 mm
Refrigerant: R404A
Controller: Operation modes: Set-point or program operation (Steps: 20 per pattern, Repetitions: Max. 98 and infinite)
Safeguards: Earth leakage circuit breaker, operation circuit fuse, electric motor overload safeguard, high-voltage shutdown system, excess temperature increase prevention system, empty heating prevention system, heater overcurrent safeguard, etc.
Equipment: Observation window, cable hole, chamber light, casters, level adjusters, USB port, RS-232C interface, etc.
Accessories: Instruction manual, soft silicon plug for cable hole, and wick
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current: 18 A
Product weight: 170 kg
