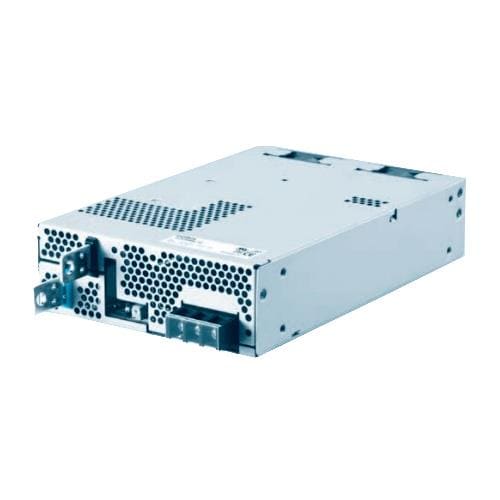

Cosel PJA1500F-12-C ອຸປະກອນຈົດຈ່າຍພະລັງງານ AC-DC, ປະເພດປິດກັບ, 1500W 12V 125A ມີການຄຸ້ມຄອງດ້ວຍຊັ້ນຄົບຄຸມ

Width: 178 mm (7.008 in)

Height: 61 mm (2.402 in)

Length: 268 mm (10.551 in)

Industry: Industrial

Approvals: cUL (CSA62368-1), EN62368-1, UL62368-1

Compliance: C-UL (CSA62368-1), EN62368-1, UL62368-1

Efficiency: 85 %

Output Power: 1.5 kW

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 125 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
