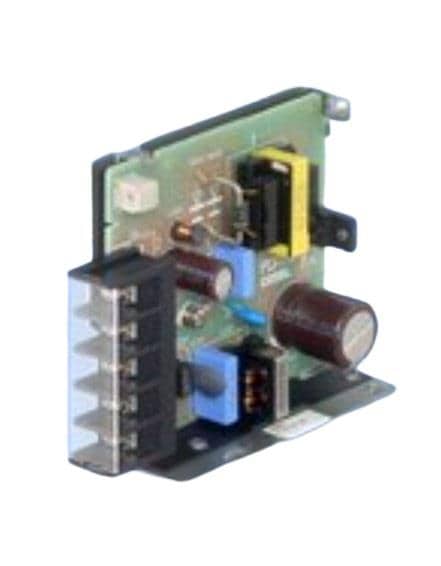

Cosel PDA15F-24 ເພາະພະລັງ AC-DC 16.8W 24V 0.7A

Width: 82 mm

Height: 31 mm

Length: 120 mm

Industry: Industrial

Approvals: EN61000-4, EN61204-3, UL62368-1

Dimensions: 120 mm x 82 mm x 31 mm

Efficiency: 83.5 %

Unit Weight: 180 g

Output Power: 16.8 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz, 60 Hz

Load Regulation: 150 mV

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 700 mA

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
