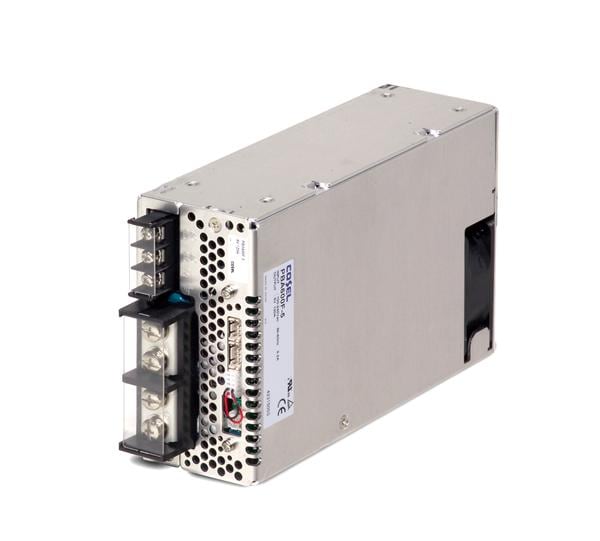

Cosel PBA600F-24-UF3 ອຸປະກອນຈົດພະລັງງານສະຫຼຸບກະທົບ 600W 24V 27A ລົງອາກາດກັບຄືນ

Width: 4.7 in

Height: 2.4 in

Length: 7.5 in

Industry: Industrial

Efficiency: 84 %

Unit Weight: 1.6 kg

Output Power: 648 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC

Cooling Method: Air-Cooled

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 600 W

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 120 VDC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 27 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 20 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 20 C
